Wavelength-Tunable Supercontinuum Lasers (450-2400 nm) | SIMTRUM Photonics Store

Products / Lasers/Light /Broadband/Tunable Lasers /Supercontinuum Lasers 375-2400nm /Wavelength-Tunable Supercontinuum Lasers (450-2400 nm) /
Wavelength-Tunable Supercontinuum Lasers (450-2400 nm)
Overview Specifications Test Data Related Products Order Now!
SIMTRUM provides wavelength-tunable supercontinuum lasers covering a wavelength range of 0.4-2.4 μm. Featuring broad spectral bandwidth, high spectral flatness, and high power output, these lasers are widely used in applications such as OCT scanning, spectral analysis, and optical detection.

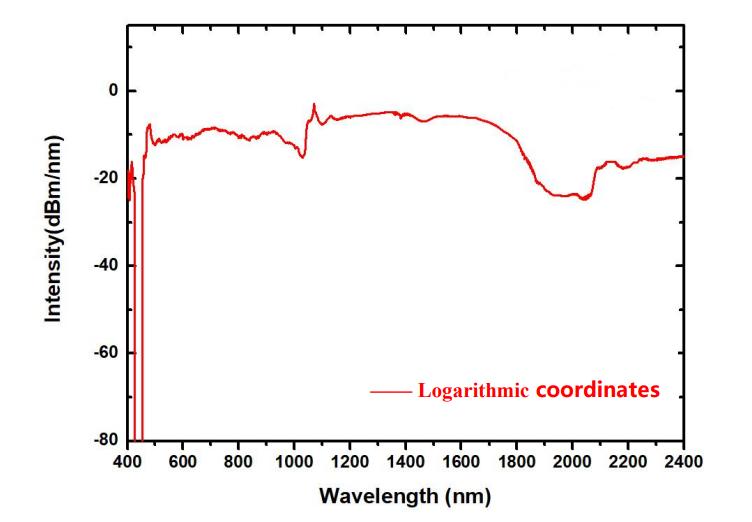

Spectrum

Features

  • Wide Spectral Range
  • High Spectral Flatness
  • High Power

Applications

  • Spectrum Analysis
  • OCT Scanning
  • Optical Inspection

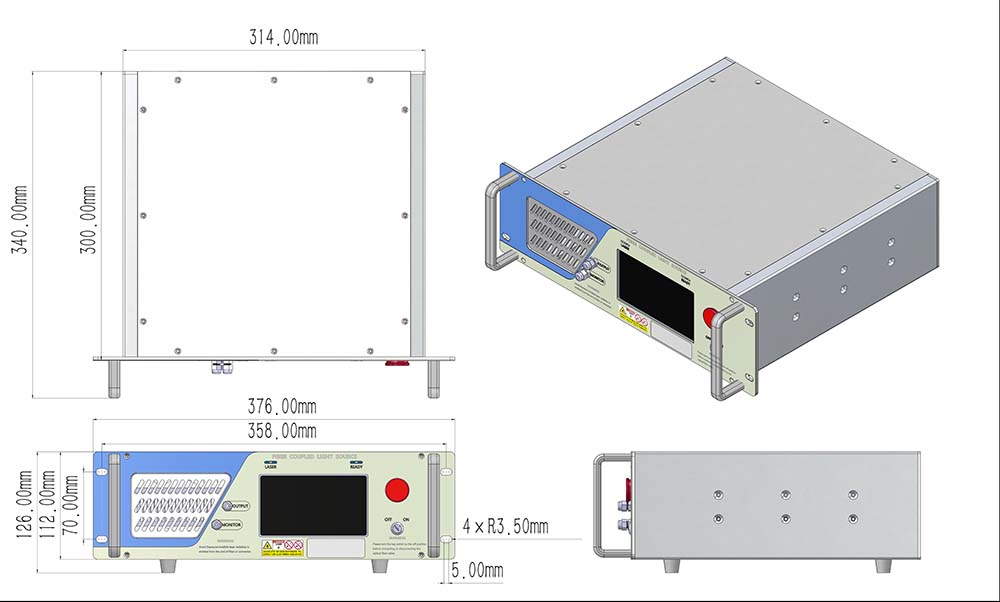

Dimensions


Product Specifications

Wavelength Range 450-1800 nm@20 dB range*
Power Spectral Density ≥-20 dBm/nm
Optical Power ≥200 mW
Power Stability ≤ ±0.02dB@15 minutes (Equivalent ≤ ±0.5%)
≤ ±0.05dB@8 hours (Equivalent ≤ ±1.2%)
Polarization State Random Polarization
Pigtail Type SMF (Hi-1060)
Pigtail Connector Type FC/APC (Collimator Output Optional)
Control Mode Touch Screen/RS232 Serial Communication
Communication Interface DB9 Female
Power Supply 100~240V AC, ＜150W
Dimension 376 mm(W)*340 mm(D)*112 mm(H)
Working Temperature -5~+35℃
Working Humidity 0~70%
Package Desktop
*The actual wavelength range extends from 450 to 2400 nm; please refer to the spectral test data for details.

Ordering Information/ Product Number
Series Wavelength（nm） Average Optical Power（mW） Output Pigtail Type Package
LL-SCL 450/1800=450-1800 200 SMF=Hi-1060 B=Desktop

Download the test report:
 Spectrum

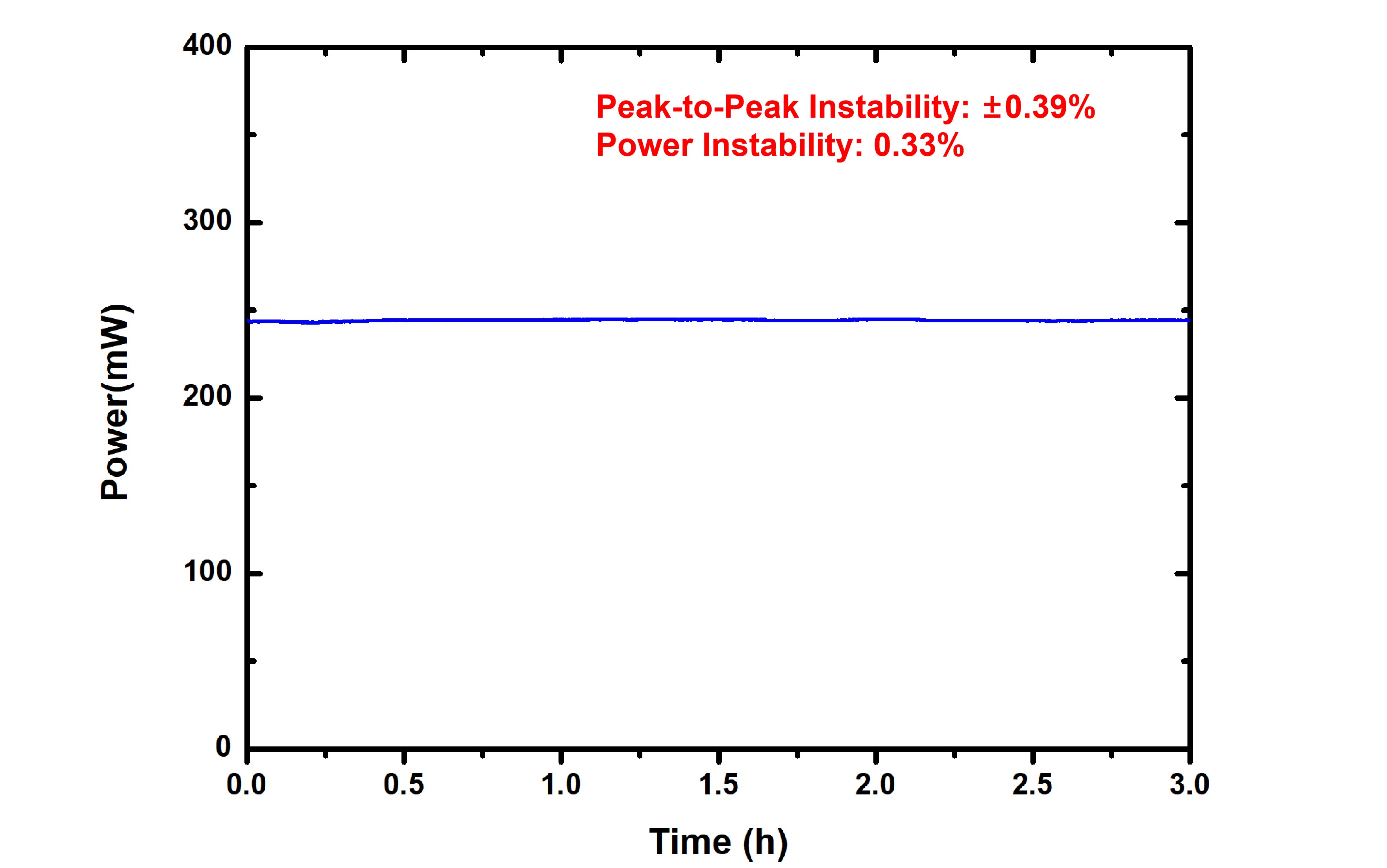

Power Stability


Type Wavelength Power Repetition Rate
Accessories
High Energy Supercontinuum Laser
(380–2400 nm)		 380-2400 nm Total Energy: 15 μJ (120 μJ optional）
Total Visible Energy: 4 μJ		 50-200 kHz tunable
Frequency-Tunable Supercontinuum Fiber Lasers
(375 - 2400 nm)		 375-2400 nm Total Power: 6/7/7.5 W
Total Visble Power: 0.5/1/2.2 W		 1.5-3 MHz tunable
160 kHz-80 MHz tunable
100 kHz-1 MHz tunable
Wavelength-Tunable Supercontinuum Lasers
(450-2400 nm)		 450-2400 nm 200 mW ~ 15 MHz




If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Working Wavelength   nm
Average Power   mW
Power Stability   %
Output Pigtail Type   / SMF/PMF





We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-SCL-450/1800-200-SMF-B
Wavelength Range: 450-1800 nm@20 dB range, Average Optical Power: ≥200 mW ,Pigtail Type: SMF (SMF-28), FC/APC ,Package: Desktop (B3) 		Contact us Request for quote

LL-SCL-450/1800-200-SMF-B - Parameter

LL-SCL-450/1800-200-SMF-B - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
