SIMTRUM's LiNbO3 electro-optical intensity modulator based on M-Z push-pull structure has low half-wave voltage and stable physical and chemical properties, and the device has a high corresponding rate, 2.5G/10G/20/40G rate is optional, and the wavelength covers 780nm, 850nm, 1064nm and 1550nm. On this basis, HER series of electro-optical intensity modulators with higher extinction ratio are developed, which can be widely used in fiber sensing, optical pulse generator, LiDAR and laser mode-locking.
Features Low insertion loss High Bandwidth Low half-wave voltage Customization option	Application Laser radar Laser sensing system Optical pulse generator Quantum key distribution High speed optical communication	Product specifications (Click Here)

Product specifications

Regular model

Model	OE-EOM-FAM-07	OE-EOM-FAM-08	OE-EOM-FAM-10		OE-EOM-FAM-13	OE-EOM-FAM-15
Operating wavelength	780nm	850nm	1064nm		1310nm	1550nm
Bandwidth	10GHz	10GHz	10GHz	20GHz	2.5GHz	2.5GHz	10GHz	20GHz	40GHz	50GHz
3dB Bandwidth	10GHz	10GHz	10GHz	18GHz	2.5GHz	2.5GHz	10GHz	18GHz	28GHz	35GHz
Insertion Loss	＜5dB	＜5dB	＜5dB		＜5dB	＜5dB
Extinction ratio @DC	＞20dB	＞20dB	＞20dB		＞20dB	＞20dB
Vn@RF (1KHz)	＜3V	＜3V	＜4V		＜3.5V	＜3.5V	<5V			<6V
Vn@Bias	＜3.5V	＜3.5V	＜5V		＜5V	<5V	<7V			<8V

High extinction ratio series

Model	OE-EOM-FAM-10-10G-HER30	OE-EOM-FAM-15-10G-HER30	OE-EOM-FAM-15-10G-HER40
Operating wavelength	1064 nm	1550 nm	1550 nm
3dB Bandwidth	10GHz	10GHz	10GHz
Insertion Loss	＜5dB	＜5dB	＜5dB
Extinction ratio @DC	＞30dB	＞30dB	＞40dB
Vn@RF (1KHz)	<5V
Vn@Bias	<7V

Characteristic curve

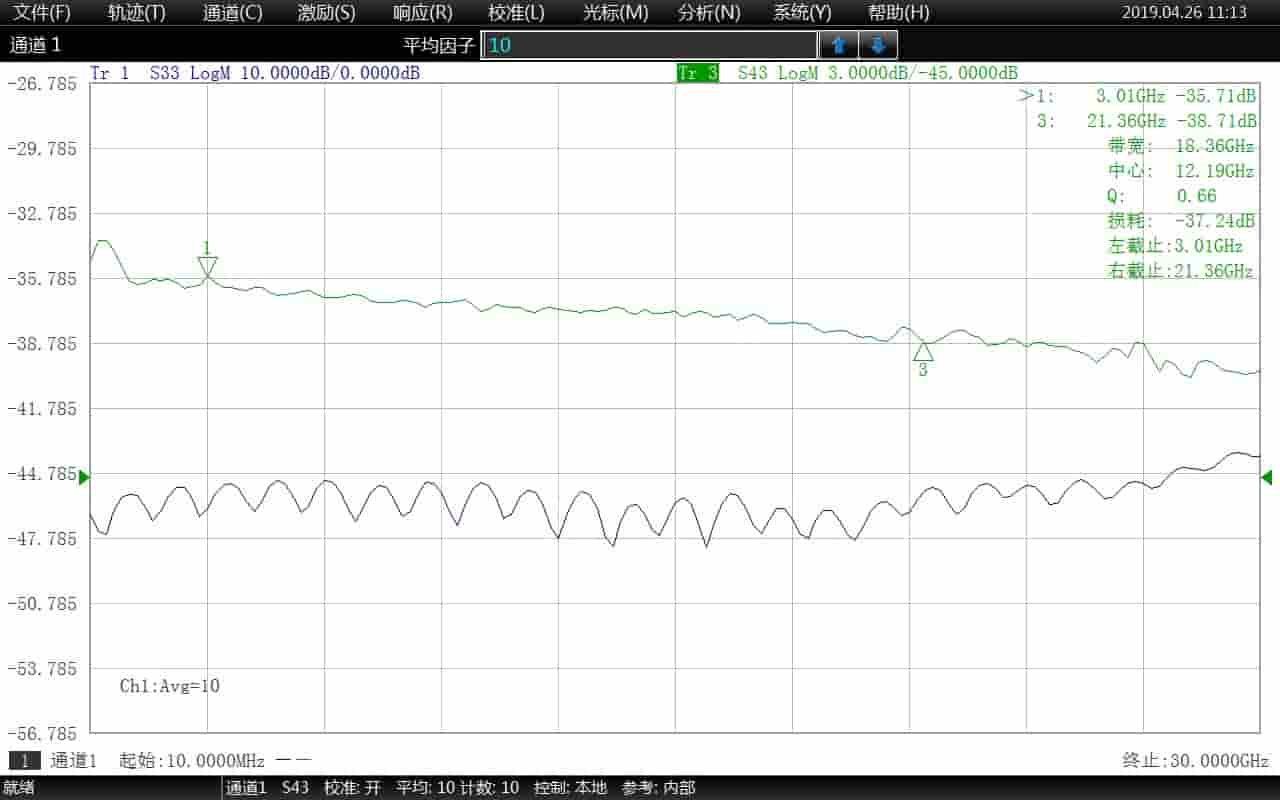

S21&S11 curves of KG-AM-15-20G

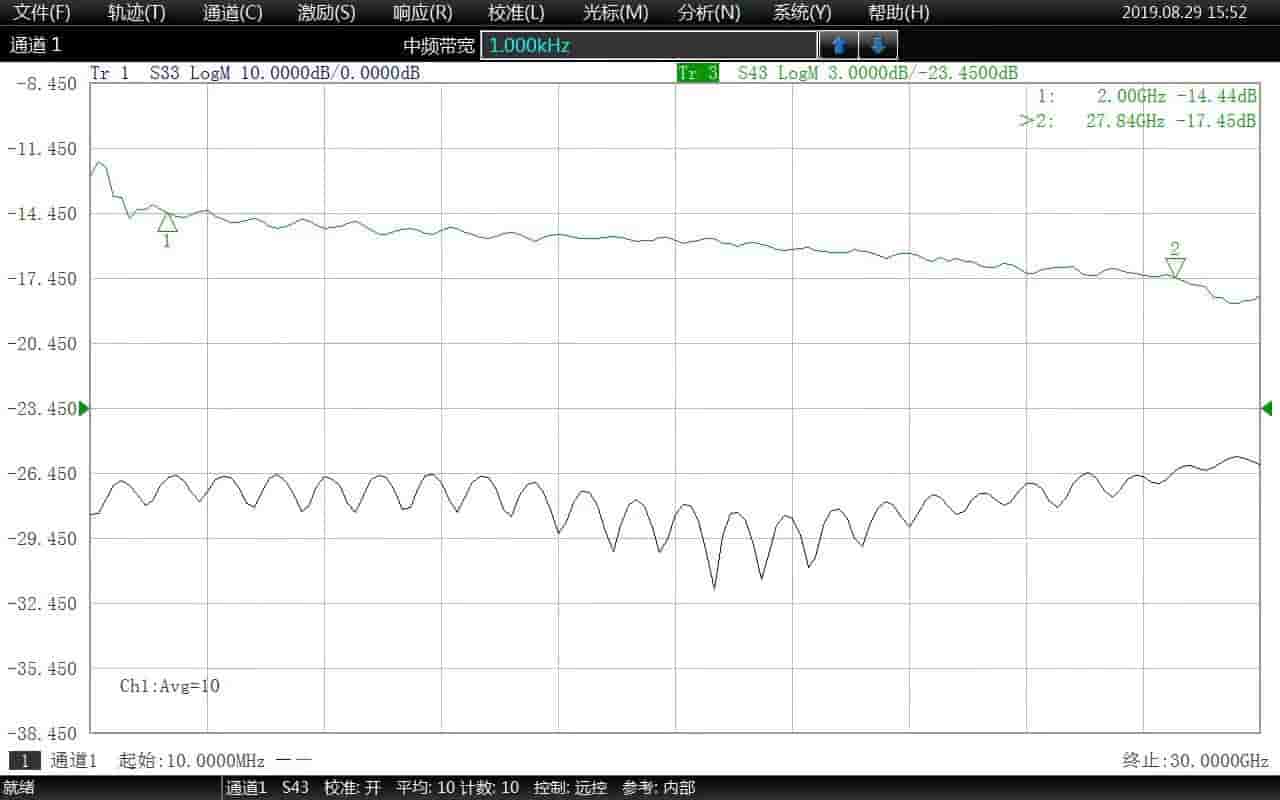

S21&S11 curves of KG-AM-15-40G

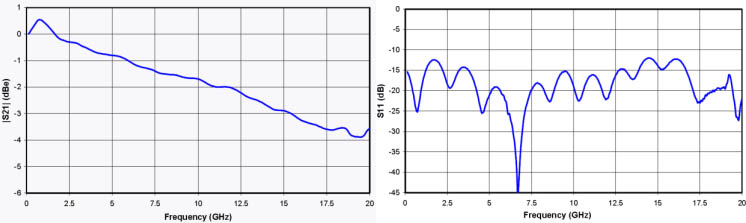

S21&S11 curves of other series

Ordering information

Type

Wavelength

Bandwidth

Monitor PD

In-Out Fiber type

Optical connector

Type：AM-Intensity Modulator

07---780nm

08---850nm

10---1060nm

15---1550nm

10G---10GHz

20G---20GHz

40G---40GHz

50G---50GHz

PD---With PD

00 --- No PD

PP---PM/PM

FA---FC/APC

FP---FC/PC

SP--Customization

Mechanical Diagram (mm)

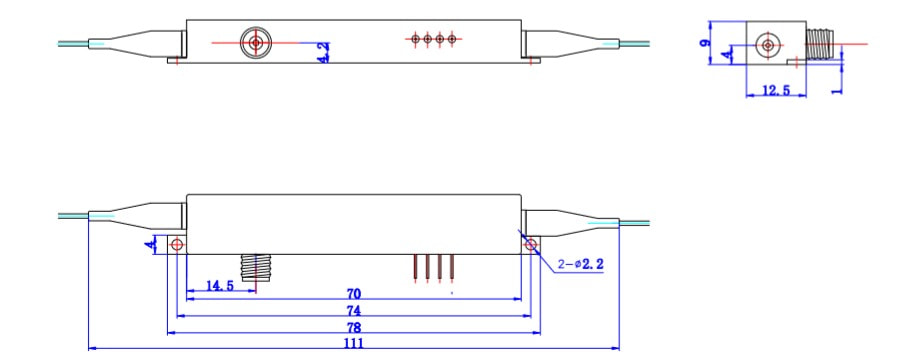

For 2.5G/10G/20G

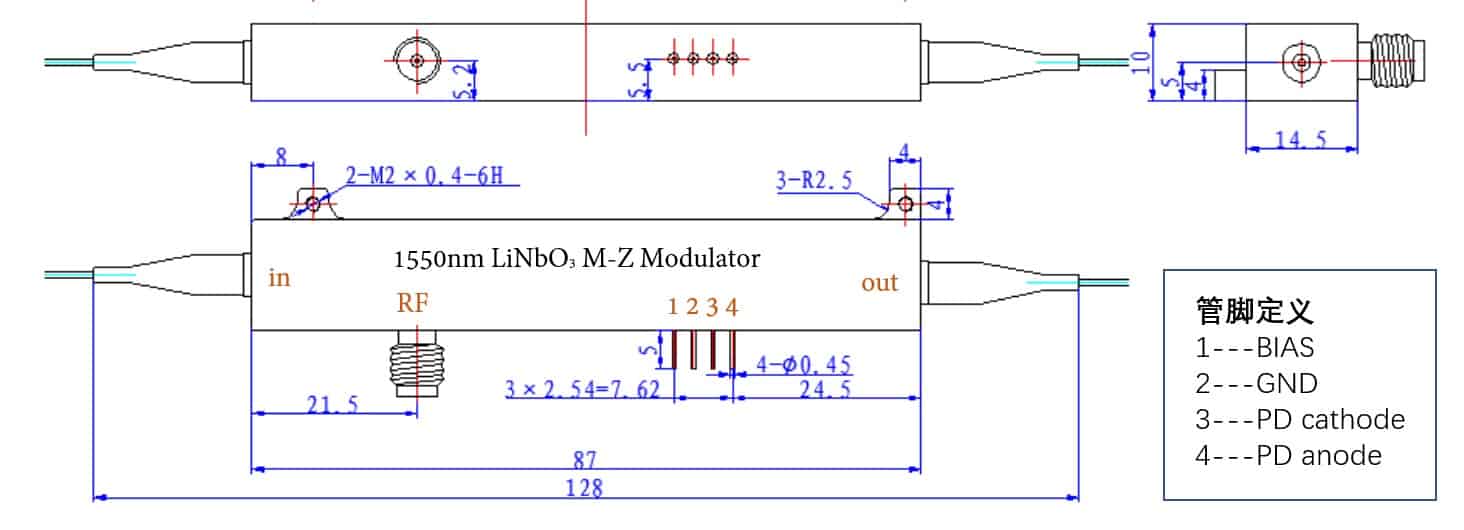

For 40G/50G

Fiber Amplifiers

Type	Wavelength	Input	Output
EDFA Single Mode C-Band - Standard/ Booster	1530 - 1565 nm	-45 dBm to -25dBm -6dBm to +3dBm	35@-35dBm / 45@-45dBm 15/17/20/23/25/26 dBm
EDFA Single Mode C-Band In-Line	1530 - 1565 nm	-25 dBm to +3 dBm	13/17/23/25/26 dBm
EDFA Single Mode C-Band Gain Flattened	1530 - 1565 nm	-32 dBm to -10 dBm	14/17/20/23 dBm
EDFA Single Mode C-Band High Power	1530 - 1565 nm	- 6 dBm to +10dBm	27/30/33/35/37/40 dBm
EDFA Polarization Maintaining C-Band PM - Low Power / High Power	1530 - 1565 nm	-30 dBm to +3 dBm - 6 dBm to +10 dBm	14/17/20/23/26 dBm 30/33/37/40 dBm
EDFA Single Mode C-Band Pulsed	1530 - 1565 nm	1-10mw	1-1000W
EDFA Single Mode L-Band High Power	1530 - 1603 nm	- 6 dBm to +10 dBm	27/30/33/37 dBm
EDFA Polarization Maintaining L-Band Low Power / High Power	1530 - 1603 nm	- 6 dBm to +3 dBm - 6 dBm to +10 dBm	15/17/20/23/25 dBm 27/30/33/37 dBm
EDFA Single Mode C+L Band Booster	1528 -1563 nm 1570 - 1603 nm	- 6 dBm to +3 dBm	17/20/23/25 dBm
YDFA Ytterbium Doped Fiber Amplifier	1030 - 1100 nm	0 dBm to 10 dBm	17/20/23/25/26/27/30/33/37/40 @0dBm
TDFA	1920 - 2020 nm	-10 to 10 dBm	20/23/25/26/27/30 dBm
Fiber Raman Amplifier 1st Order	1528 - 1565 nm	Pump Wavelenth 1425 - 1465 nm	Total Pump Power 300/500/1000/1400 mW
Fiber Raman Amplifier 2nd Order	1425 - 1465 nm	Pump Wavelenth 1340 -1360 nm	Total Pump Power 300/500/1000/1400 mW

CW Laser Diode Module (375-785nm)

Type	Wavelength	Output Power	Fiber output
UV Laser Diode Module	375, 395, 405, 415, 420nm	upto 200mW	SM/MM
Blue Laser Diode Module	445, 473, 488nm	upto 200mW	SM/MM
Green Laser Diode Module	505, 515, 532, 561nm	upto 200mW	SM/MM
Red Diode Laser Diode Module	633, 639, 640, 642, 647, 660, 685nm	upto 200mW	SM/MM
NIR Laser Diode Module	705, 730, 785nm	upto 200mW	SM/MM
Multiple Wavelength Laser Diode Module	375 to 785nm	upto 200mW	SM/MM

Optical Power Meter (Photodiode)

Sensor Head Wavelength Choice

Power Meter Console

Integrating Sphere Size & Power Choice

Item	Detail	Unit	Remark
EOM Technical Spec Guide (Please specify your requirements)
Application			e.g., Q-switching, Mode-locking, Phase/Amplitude Modulation, Fiber Comm.
Operating Wavelength		nm
Half-Wave Voltage (Vπ)		V	@ Specific Frequency (Key Parameter)
Modulation Bandwidth (3dB)		MHz
Insertion Loss		dB
Extinction Ratio		dB
RF Input Impedance		Ω	Typically 50Ω
EOM Driver Sales Guide
Output Modulation Voltage (Vpp)		V	Must match the Vπ of the EOM
Modulation Bandwidth		MHz
DC Power Supply		V
Input Signal Type			e.g., TTL, LVDS, Analog
Customer Laser Feature (You can also provide input laser spec)
Output Mode		/	CW or Pulsed
Wavelength		nm
Beam Diameter (1/e²)		mm	If Free Space
Fiber Type and Size		/	If Fiber Coupled (e.g., SMF-28, PM980)
Average Laser Power		W
Laser Repetition Rate		Hz	If Pulsed
Pulse Energy		mJ	If Pulsed
Pulse Duration		ns	If Pulsed
Polarization		/	e.g., Linear, Random

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
OE-EOM-FAM-07-10G Operating wavelength:780nm Bandwidth :10GHz Insertion Loss :＜5dB Extinction ratio @DC :＞20dB Vn@RF (1KHz) :＜3V Vn@Bias: ＜3.5V	4-6week	Request for quote
OE-EOM-FAM-08-10G Operating wavelength:850nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜3V,Vn@Bias: ＜3.5V	4-6week	Request for quote
OE-EOM-FAM-10-10G Operating wavelength:1064nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜4V,Vn@Bias: ＜5V	4-6week	Request for quote
OE-EOM-FAM-15-10G Operating wavelength：1550nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜5V,Vn@Bias: ＜7V	4-6week	Request for quote
OE-EOM-FAM-15-20G Operating wavelength：1550nm,Bandwidth :20GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜5V,Vn@Bias: ＜7V	4-6week	Request for quote
OE-EOM-FAM-15-40G Operating wavelength：1550nm,Bandwidth :40GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜5V,Vn@Bias: ＜7V	4-6week	Request for quote
OE-EOM-FAM-10-10G-HER30 Operating wavelength：1064nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞30dB,Vn@RF (1KHz) :＜4V,Vn@Bias: ＜5V	4-6week	Request for quote
OE-EOM-FAM-10-20G Operating wavelength：1064nm,Bandwidth :20GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜4V,Vn@Bias: ＜5V	4-6week	Request for quote
OE-EOM-FAM-15-2.5G Operating wavelength：1550nm,Bandwidth :2.5GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜3.5V,Vn@Bias: ＜5V	4-6week	Request for quote
OE-EOM-FAM-15-10G-HER30 Operating wavelength：1550nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞30dB,Vn@RF (1KHz) :＜5V,Vn@Bias: ＜7V	4-6week	Request for quote
OE-EOM-FAM-15-10G-HER40 Operating wavelength：1550nm,Bandwidth :10GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞40dB,Vn@RF (1KHz) :＜5V,Vn@Bias: ＜7V	4-6week	Request for quote
OE-EOM-FAM-15-50G Operating wavelength：1550nm,Bandwidth :50GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜6V,Vn@Bias: ＜8V	4-6week	Request for quote
OE-EOM-FAM-13-2.5G Operating wavelength：1310nm,Bandwidth :2.5GHz,Insertion Loss :＜5dB,Extinction ratio @DC :＞20dB,Vn@RF (1KHz) :＜3.5V,Vn@Bias: ＜5V	4-6week	Request for quote
