Wide Field /Confocal Raman Microscope | SIMTRUM Photonics

Products / Microscopes /Raman/PL Microscope /Confocal Raman Microscope /
Confocal Raman Microscope
Overview Specifications Optical Path Application Accessories Software Related Product Order Now!

RAM Series Confocal Raman Microscope System

The SIMSCOP RAM Series Confocal Raman Microscope System is designed for micro-area spectral research in fields such as materials science, semiconductors, energy, chemistry, and life sciences. The system integrates Raman spectroscopy measurement, microscopic observation, 2D and 3D scanning imaging, and automated control into a unified platform. Users can choose upright or inverted microscope structures, single-channel or triple-channel configurations, as well as various excitation wavelengths, spectrometers, and sample stages based on sample morphology and experimental objectives.

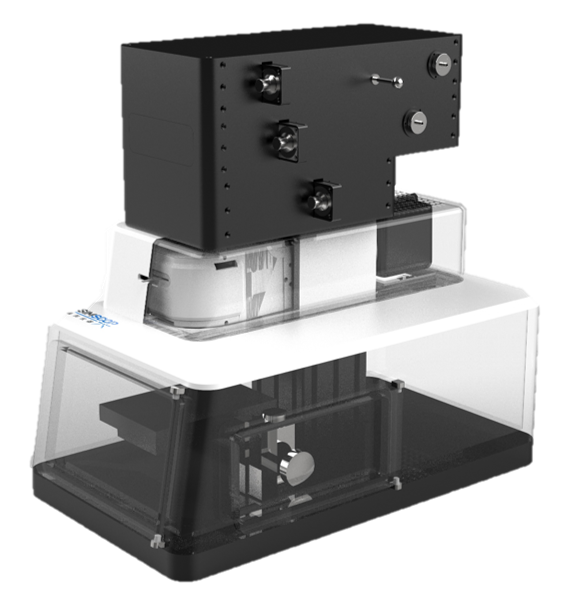

产品图 小 透明.png
Upright Configuration

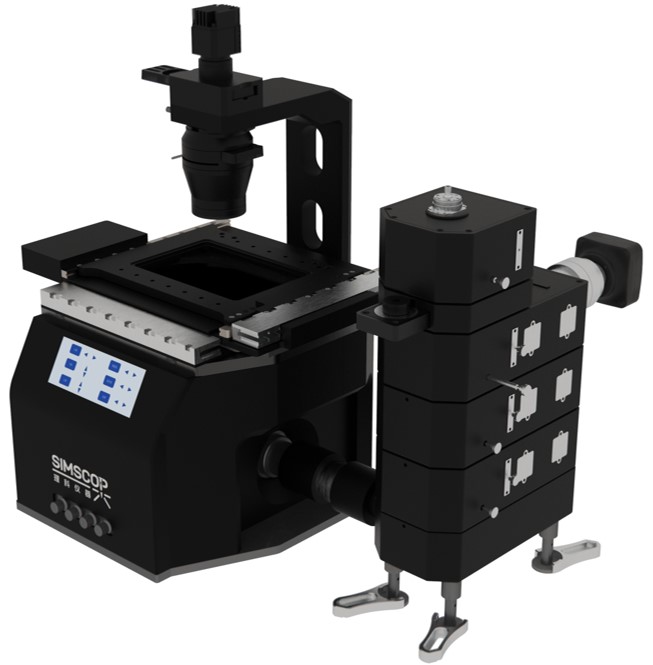

Inverted Configuration

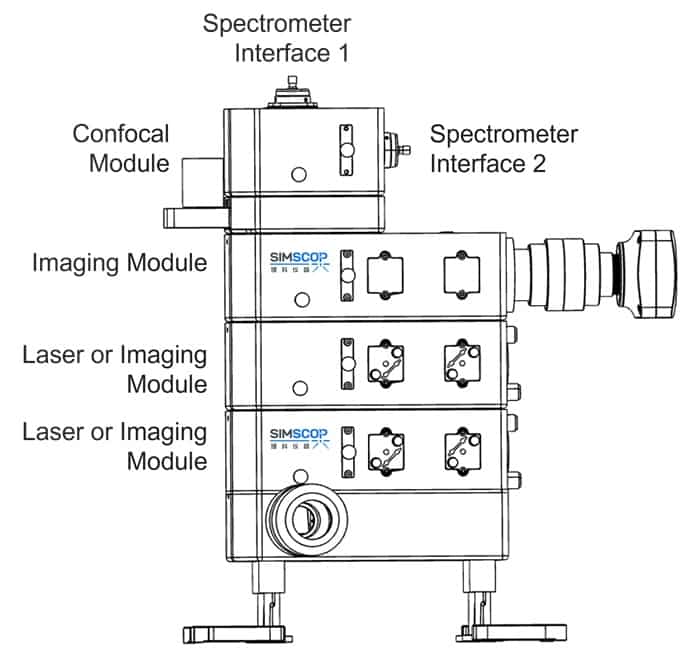

Featuring a platform-based modular design, the RAM Series allows laser, spectroscopy, confocal, imaging, and stage functions to be combined as needed while reserving multiple external interfaces. Users can either build a new micro-Raman system or expand functionality with existing lasers or spectrometers, covering routine spectral acquisition, Raman Mapping, confocal depth profiling, and specialized sample environment measurements on a single platform.



Key Highlights

Flexibly combine components around different samples, excitation conditions, and experimental environments, balancing current research tasks with future expansion needs.

01

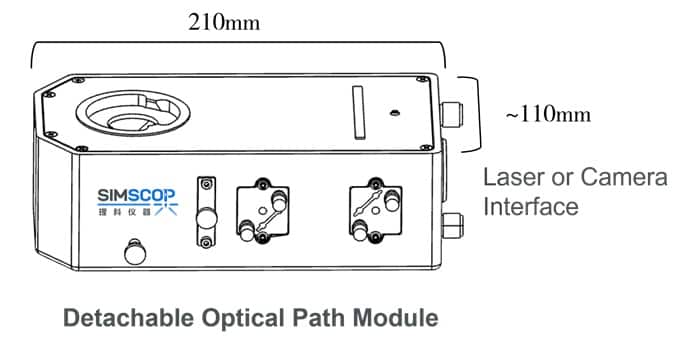

Platform Modular Design

Lasers, spectrometers, confocal units, imaging systems, and sample stages are combined in a modular architecture, configured around current experimental needs while reserving space for future expansions.

02

Multiple System Configurations

Supports both upright and inverted microscopic structures, offering single-channel, triple-channel, and various light collection options. It also supports non-coaxial optical measurements, providing more options for off-axis incidence, collection, or coupling with external optical paths.

03

Confocal Scanning Imaging

Combined with a high-precision XYZ motorized stage, it enables point, line, area, and Z-axis scanning to acquire Raman spectra, 2D mapping, and 3D depth profiling data.

04

Versatile Sample Environments

Connectable to tensile, high/low temperature, in-situ electrochemical, vacuum, and electrical probe stages, providing an expandable foundation for variable temperature, mechanical strain, in-situ, and multi-physical field experiments.



Typical Applications

Different samples and research targets require specific excitation wavelengths, microscopic structures, and sample environments. The RAM Series can be flexibly configured for the following application scenarios.

  • Materials & Semiconductors: Material composition, phase identification, crystal structure, defect, and stress analysis
  • Biological & Liquid Samples: Micro-area spectroscopy analysis of cells, tissues, culture media, and other liquid samples
  • Pharmaceuticals & Polymers: Polymorph identification, component distribution, multilayer structure, and micro-contaminant analysis
  • Batteries & In-Situ Research: In-situ spectroscopy under electrochemical, thermal, mechanical, and other controlled conditions

The RAM Series offers multiple configurations including RAM S, RAM S Pro, RAM T, and RAM T Pro. For detailed model differences, spectral range, and resolution specifications, please refer to the "Specifications" page.

Specifications

The RAM Series offers single-channel and three-channel configurations, as well as standard and high-NA optical paths. Select the appropriate model according to the excitation wavelength, signal strength, and scanning requirements.

Parameter
RAM S
RAM S Pro
RAM T
RAM T Pro
Laser
Single-Mode, Single-Channel Laser: 1 Channel
Single Wavelength: 532 nm
Power: 100 mW; linewidth: <0.1 nm; SM fiber; power stability: 1%
Optional Channel Wavelengths: 405 nm, 633 nm, and 785 nm; 1064 nm is additionally available for the advanced version
Single-Mode, Multi-Channel Laser: 3 Channels
532 nm: 100 mW; linewidth: <0.1 nm; SM fiber; stability: 1%
633 nm: 100 mW; linewidth: 0.06 nm; MM fiber; stability: 2%
785 nm: 50 mW; linewidth: <0.005 nm; SM fiber; stability: 1%
405 nm is optional for the standard version; 1064 nm is optional for the advanced version
Raman Parameters
Symmetric C-T Optical Path
High-NA Optical Path
Symmetric C-T Optical Path
High-NA Optical Path
Maximum Wavenumber Range: 200–4850 cm−1
Minimum Wavenumber Resolution: 5.5–7 cm−1
Numerical Aperture: F/4
Maximum Wavenumber Range: 200–3000 cm−1
Minimum Wavenumber Resolution: 6.5–8 cm−1
Numerical Aperture: F/1.3
532 nm Excitation Channel
Range: 200–4850 cm−1
Resolution: 5.5–7 cm−1

633 nm Excitation Channel
Range: 200–3350 cm−1
Resolution: 3.5–5 cm−1

785 nm Excitation Channel
Range: 200–3000 cm−1
Resolution: 2.5–4 cm−1
Numerical Aperture: F/4
532 nm Excitation Channel
Range: 200–3000 cm−1
Resolution: 6.5–8 cm−1

633 nm Excitation Channel
Range: 200–3350 cm−1
Resolution: 3.5–5 cm−1

785 nm Excitation Channel
Range: 200–4000 cm−1
Resolution: 4–6 cm−1
Numerical Aperture: F/1.3
SNR: 1000:1    Integration Time: 6 ms–60 min
High Raman Sensitivity: The high-NA optical path provides nearly 10 times the sensitivity of the symmetric C-T optical path. See the performance tests for details.
Detector Specifications
Cooled BSI CCD; pixel count: 1044 × 64; pixel size: 24 × 24 μm; cooling temperature: −20 °C
Widefield Illumination
LED / halogen-lamp Köhler illumination system
Widefield Camera
Back-illuminated CMOS camera
15 FPS @ 5440 × 3648；50 FPS @ 2736 × 1824；60 FPS @ 1824 × 1216
Confocal Mode
Standard: Fixed pinhole (compatible with different spectrometer types)
Motorized continuously variable pinhole
Confocal Imaging
Resolution
Approx. 200 nm with a 100× objective
Spot Size
Approx. 1 μm with a 50× objective

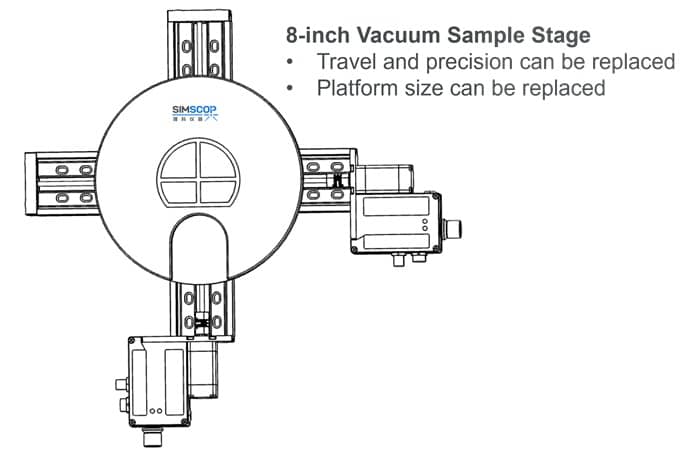

Sample Stage
XY Axes: Travel: ±10 mm; resolution: 0.1 μm; positioning accuracy: 3 μm; repeatability: ±0.3 μm (backlash: 0.3 μm); maximum speed: 5 mm/s
Z Axis: Travel: 5 mm; resolution: 0.1 μm; positioning accuracy: 3 μm; repeatability: ±0.3 μm (backlash: 0.3 μm); maximum speed: 5 mm/s
Load Capacity
3 kg
Sample Stage
Compatibility
Compatible with standard tensile stages, heating/cooling stages, in situ stages, and vacuum stages
Objectives*1
10× long-working-distance objective: NA ≥ 0.25; WD ≥ 30 mm; resolution ≤ 1 μm
20× long-working-distance objective: NA ≥ 0.40; WD ≥ 20 mm; resolution ≤ 0.80 μm
50× long-working-distance objective: NA ≥ 0.50; WD ≥ 10 mm; resolution ≤ 0.60 μm
Software
Key Functions
1. Z-axis autofocus   2. Confocal adaptive pinhole (multi-channel models only)
3. Multidimensional scanning and imaging   4. Advanced Raman spectral processing

*1 Objectives can be selected according to customer requirements. Configurations and specifications may vary with optional packages; please refer to the final technical agreement.



How Key Parameters Affect Experiments

Specifications should be interpreted in the context of the sample characteristics and research objectives. The following information is intended to assist with configuration selection.

Multiple Excitation Wavelengths
Different wavelengths affect fluorescence background, Raman response, penetration depth, and the degree of light-induced sample damage. Select 405, 532, 633, or 785 nm according to the material type and signal characteristics, with 1064 nm available for selected configurations.
Single- and Three-Channel Configurations
Single-channel systems are suitable for routine studies using fixed excitation conditions. Three-channel systems integrate multiple excitation wavelengths, making it easier to compare the spectral response of a sample under different excitation conditions.
Standard and High-NA Optical Paths
The symmetric C-T optical path balances wavenumber range and routine measurement requirements. The high-NA optical path provides greater signal-collection efficiency and is better suited to weak signals or experiments requiring higher acquisition efficiency.
Confocal Microscale Measurement
The confocal pinhole suppresses out-of-focus signals. Combined with microscope objectives and XYZ scanning, it supports precise positioning of small regions, 2D mapping, and depth-resolved measurements.

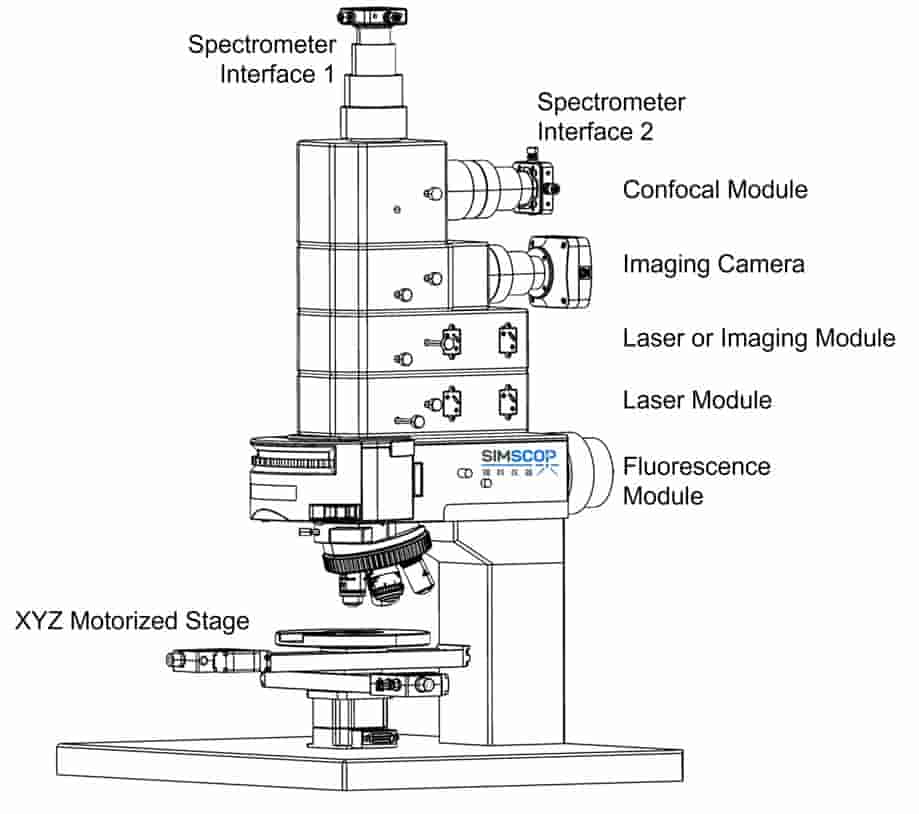

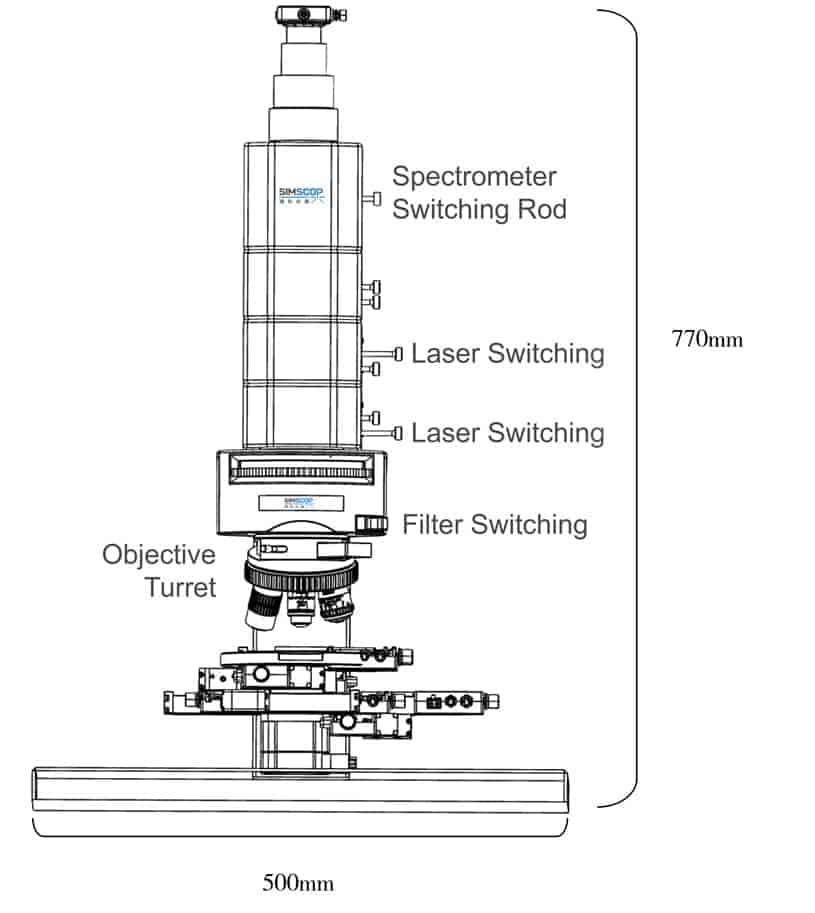

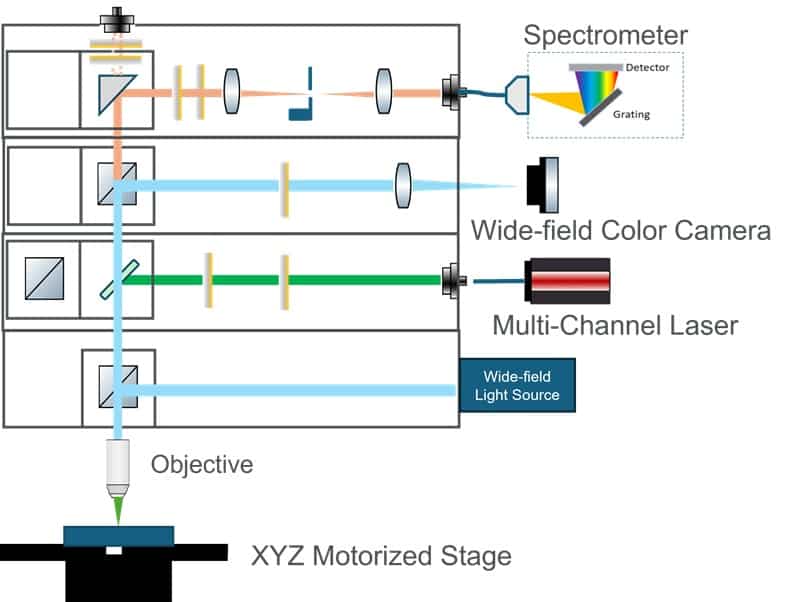

SIMSCOP Upright Confocal Raman | Product Appearance & Optical Path

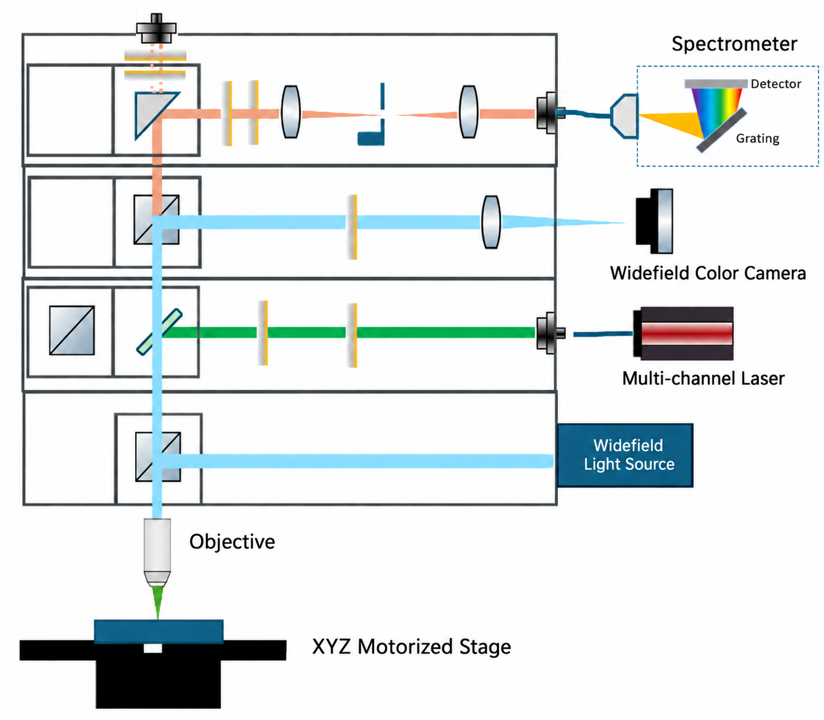

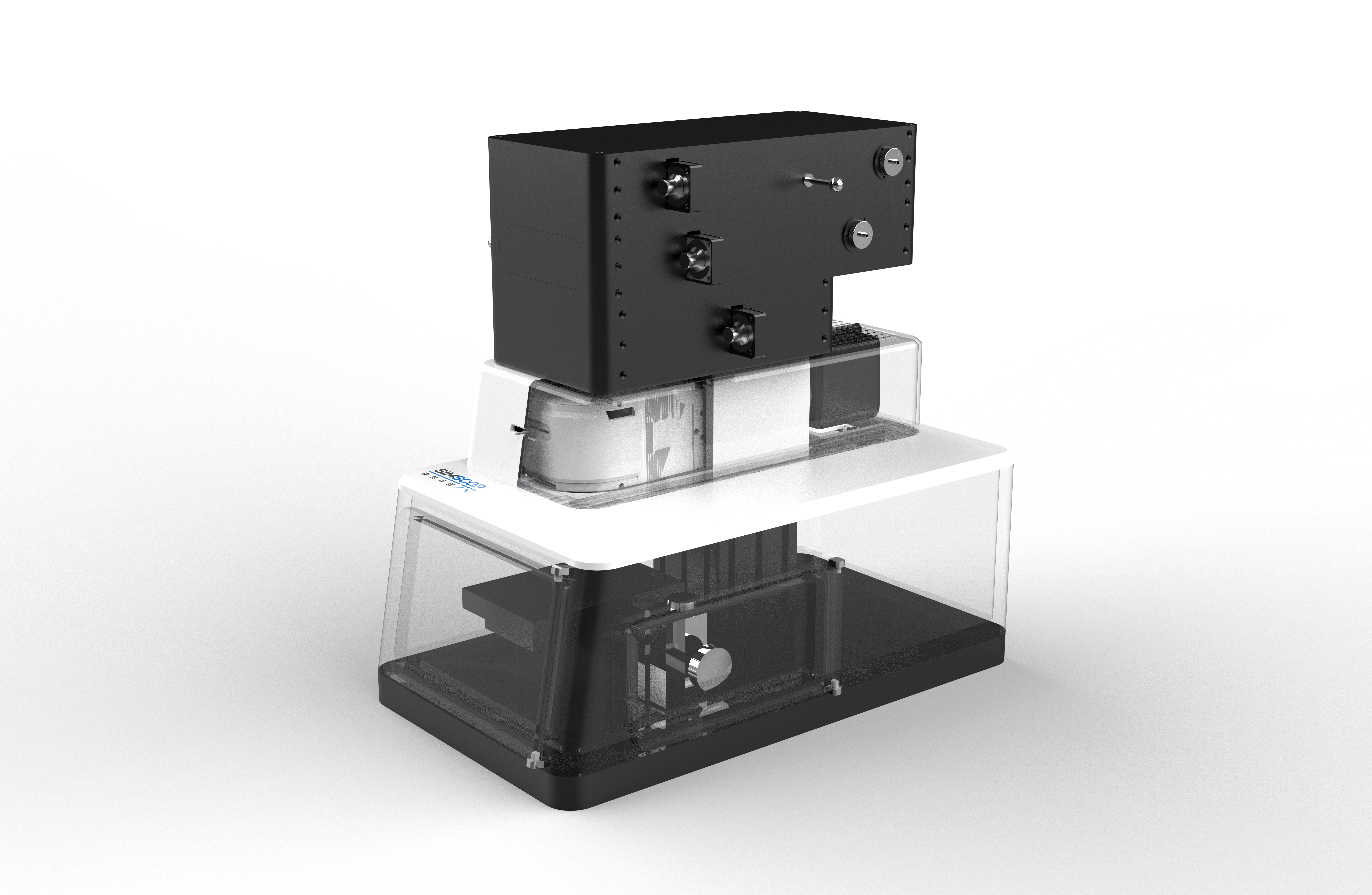

Upright Raman Microscope Product Image 拉曼共聚焦正置光路图-EN.PNG

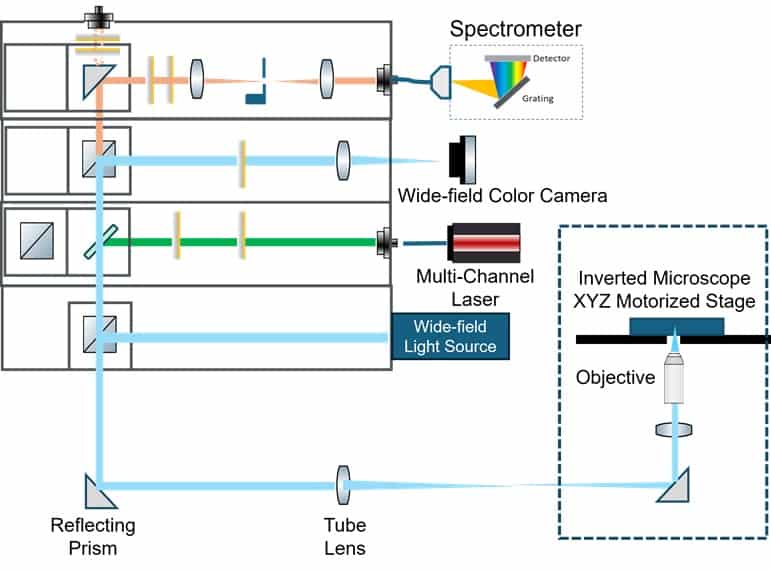

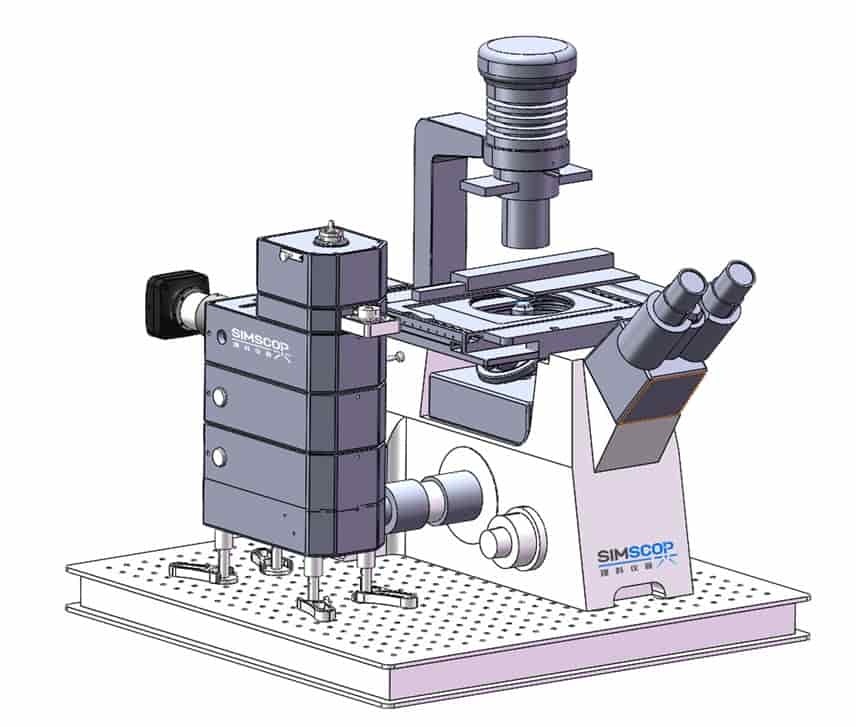

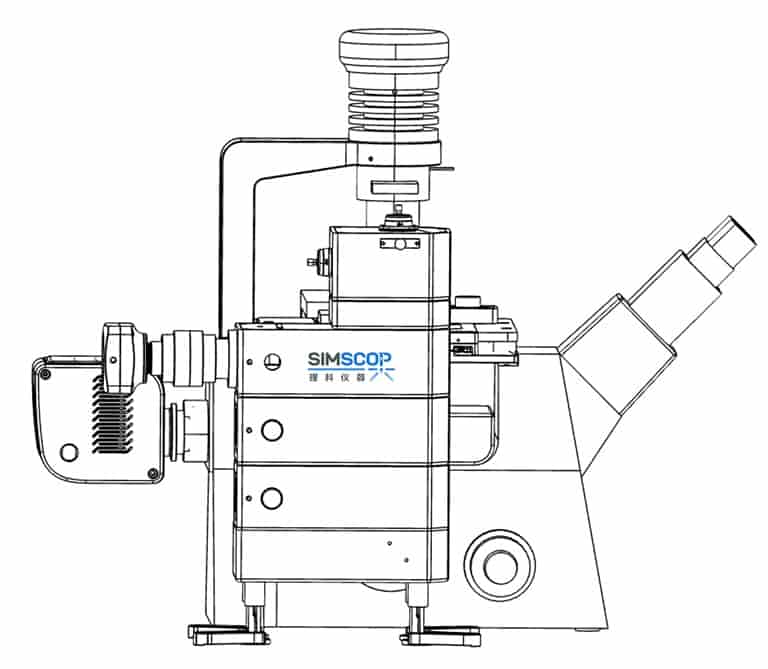

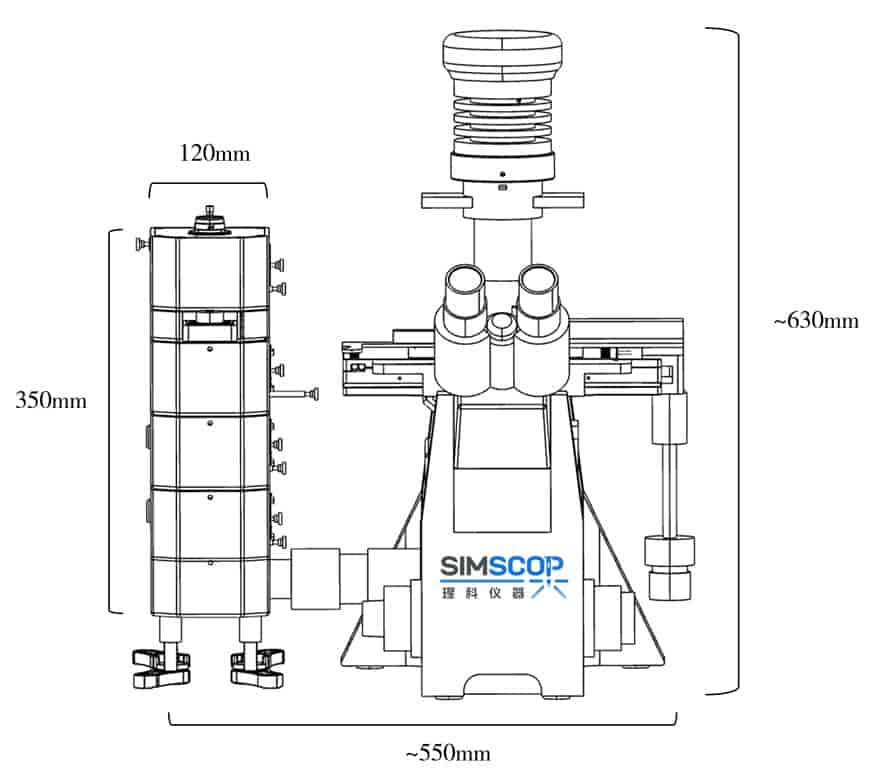

SIMSCOP Inverted Confocal Raman | Product Appearance & Optical Path

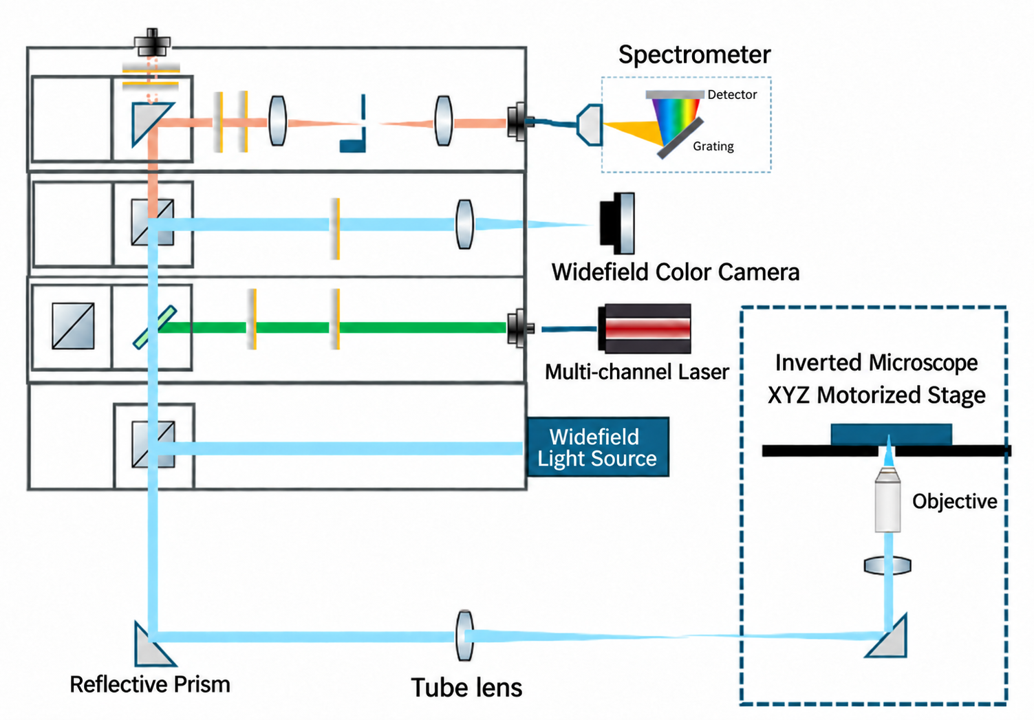

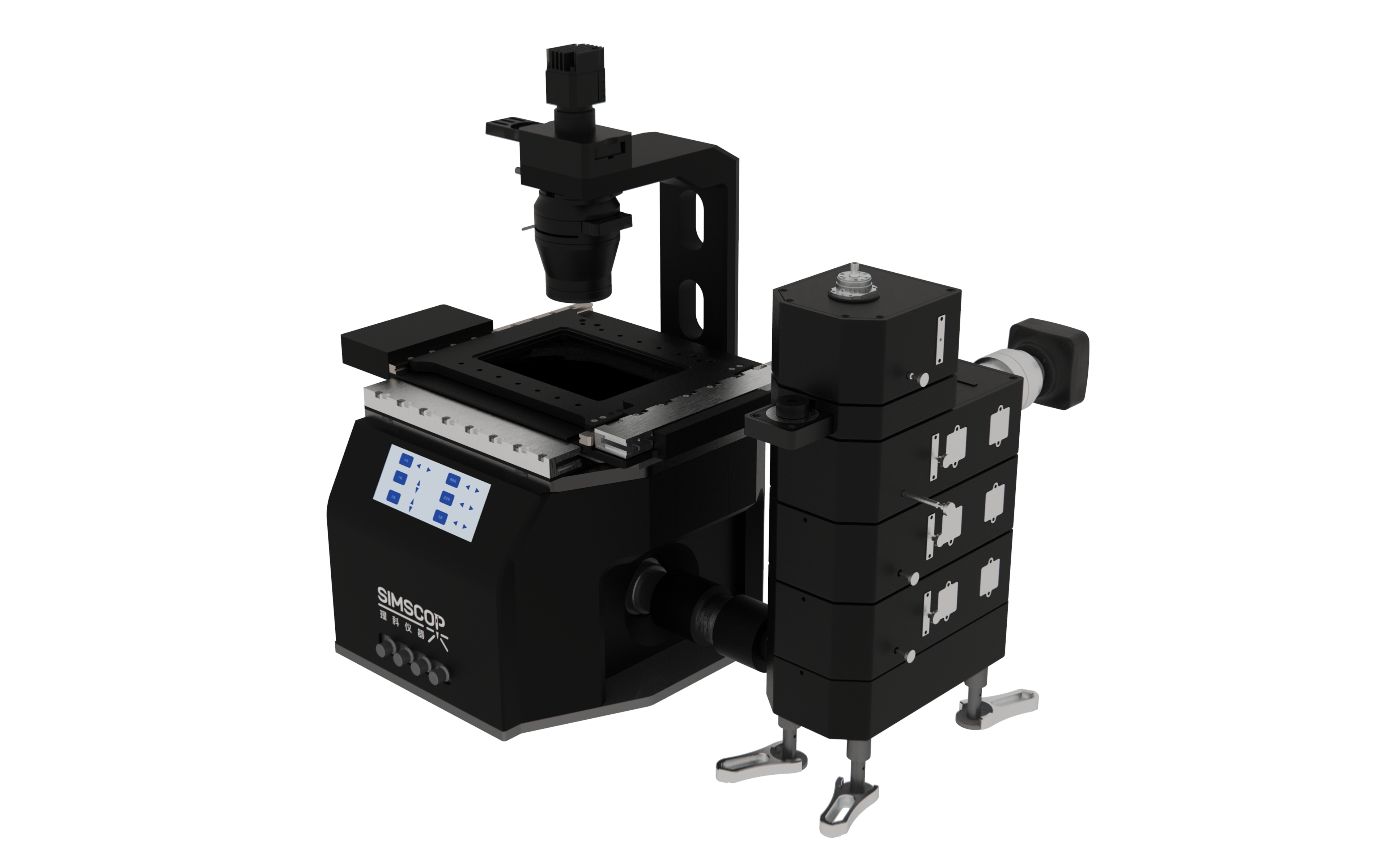

Inverted Confocal Raman Microscope Product Image 拉曼共聚焦倒置光路图-EN.PNG



Applications

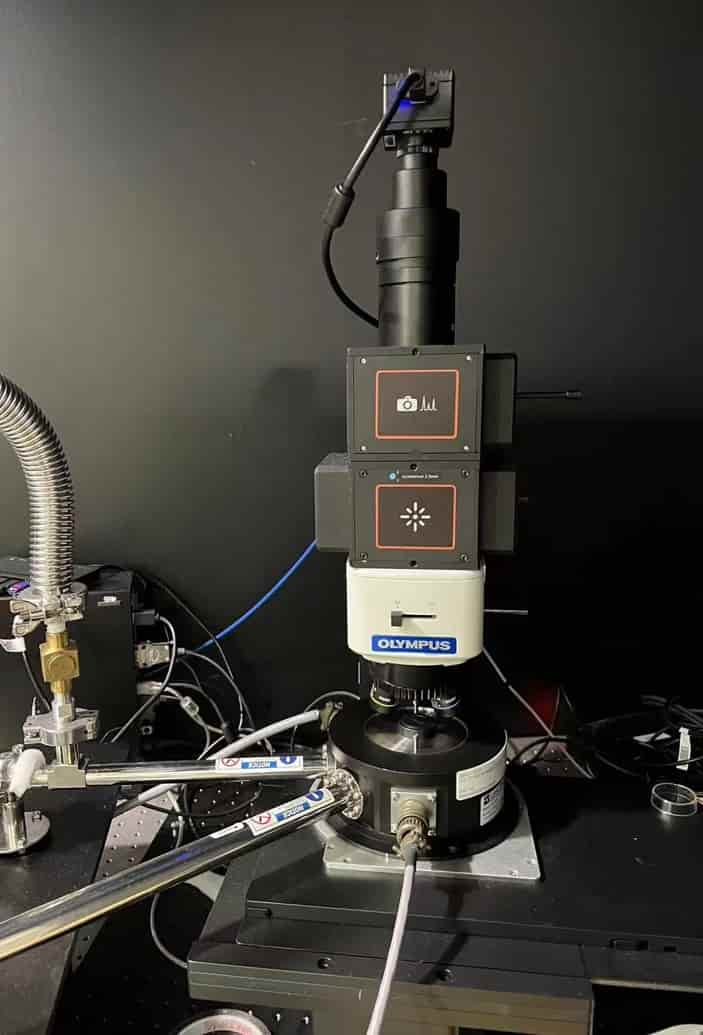

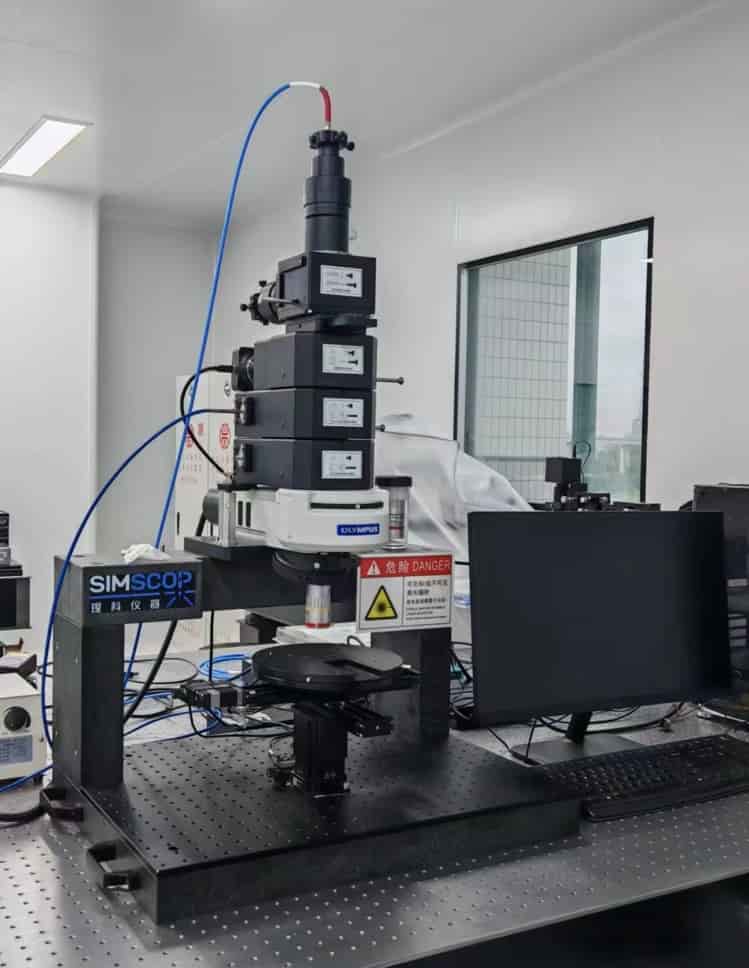

Singapore IMRE Ultra-Low Temperature Raman System

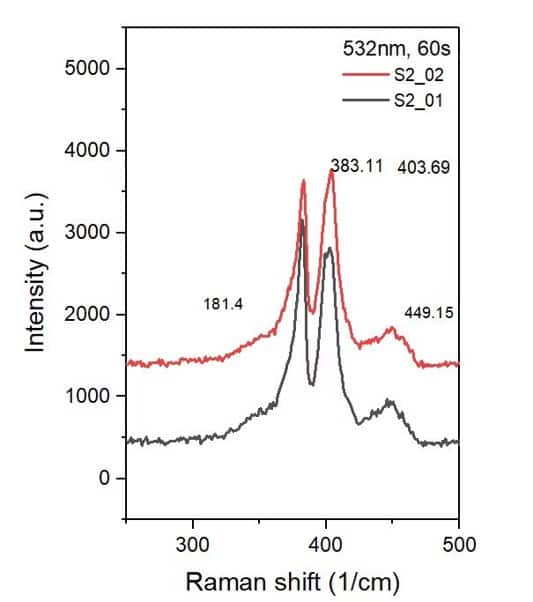

IMRE Raman Test Results, 532nm Raman

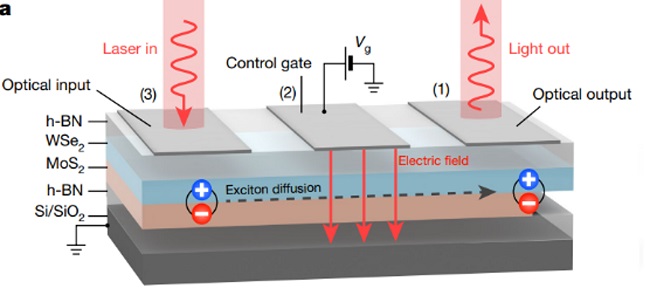

Sun Yat-sen University Dual Optical Path PL Test System

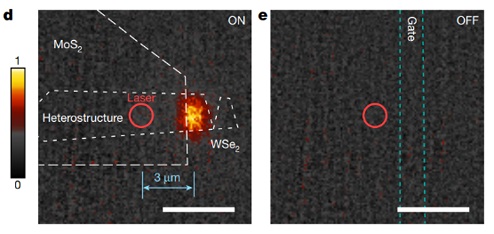

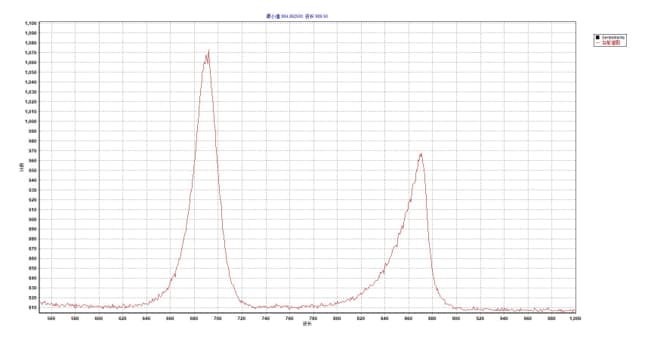

Sun Yat-sen University PL Test Results



Get the Perfect Custom Combination! Contact us now for Various Sample Stage:

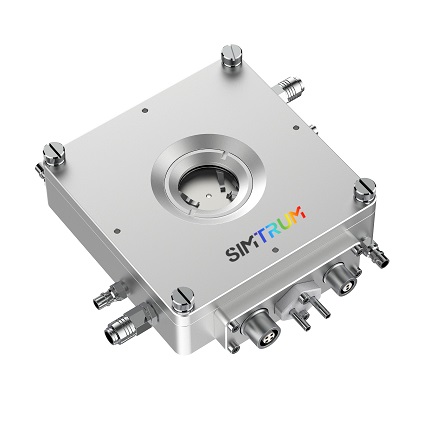

High Temperature Stage 1200~1800 C

High Temperature Stage

1200 ~ 1800 ˚C

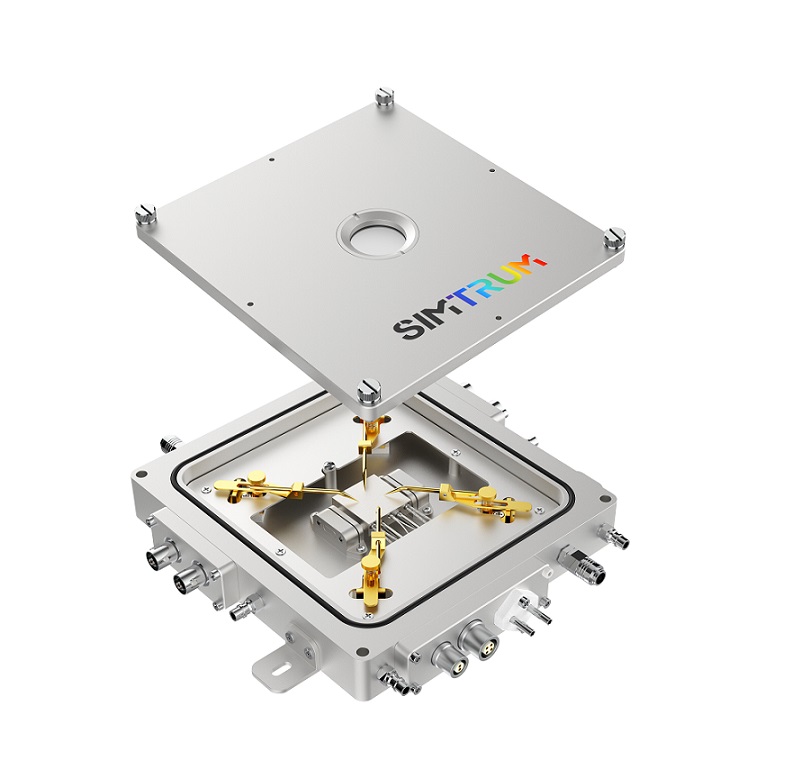

Electrical Probe Temperature Stage -190 ~ 600 ˚C

Electrical Probe Temperature Stage

-190 ~ 600 ˚C

In-situ Tensile Heating & Cryo stage

In-situ Tensile Heating & Cryo stage

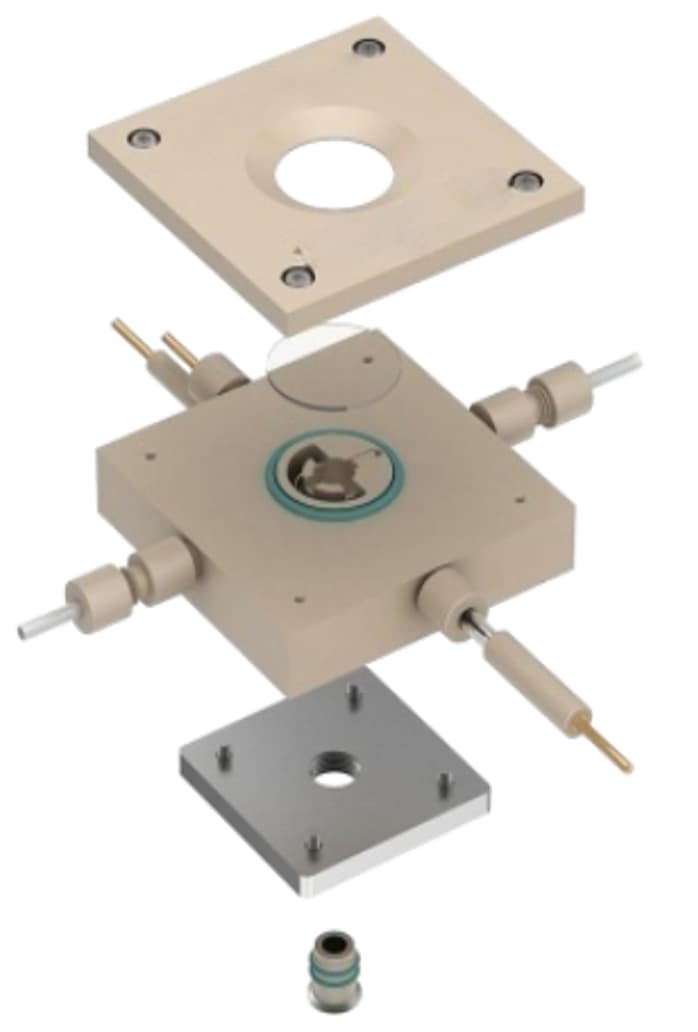

Electrochemical In-situ Cell

Electrochemical In-situ Cell

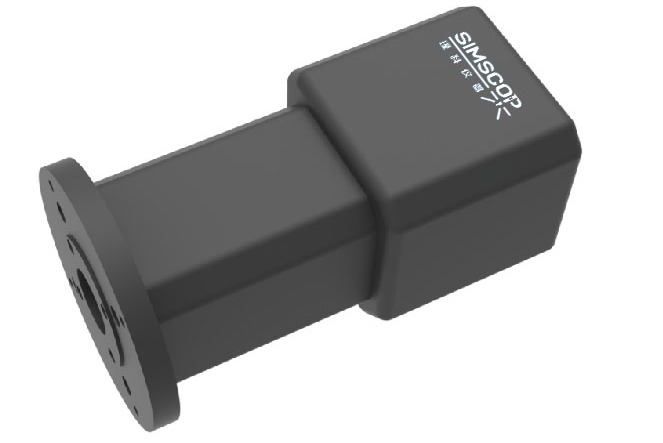

Fiber Adapter

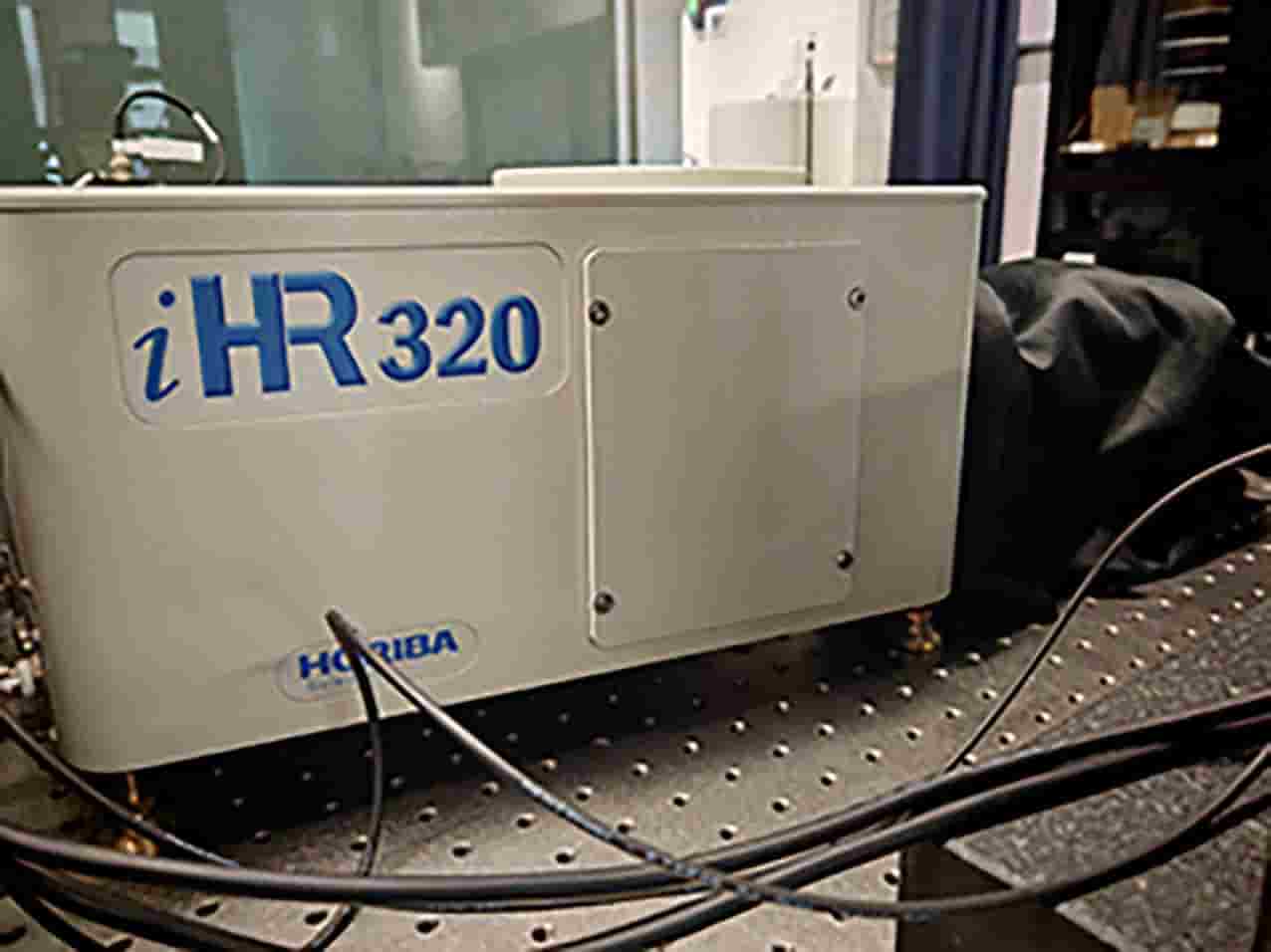

SFOA-091 Fiber Adapter Kit is designed specifically for HORIBA iHR, MicroHR, and FHR series spectrometers and is equipped with lenses with focal lengths of 60 mm and 40 mm. The kit includes a central mounting bracket that allows horizontal and vertical adjustment as well as rotation of the fiber position.

Once installed on the instrument slit, the adapter uses the lenses to match the fiber output to the instrument aperture, maximizing use of the fiber aperture while reducing stray light. The optical mounts at both ends accept optional 25 mm-diameter filters. The adapter is designed for fibers with a numerical aperture of 0.22 (f/2.3).

Product Advantages

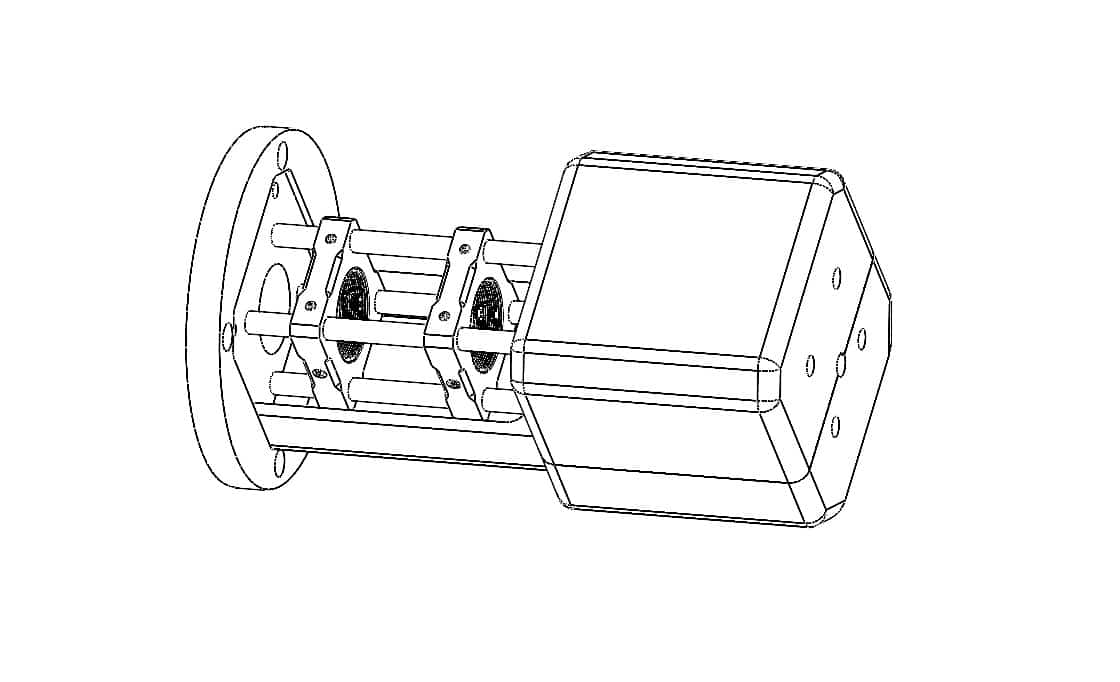

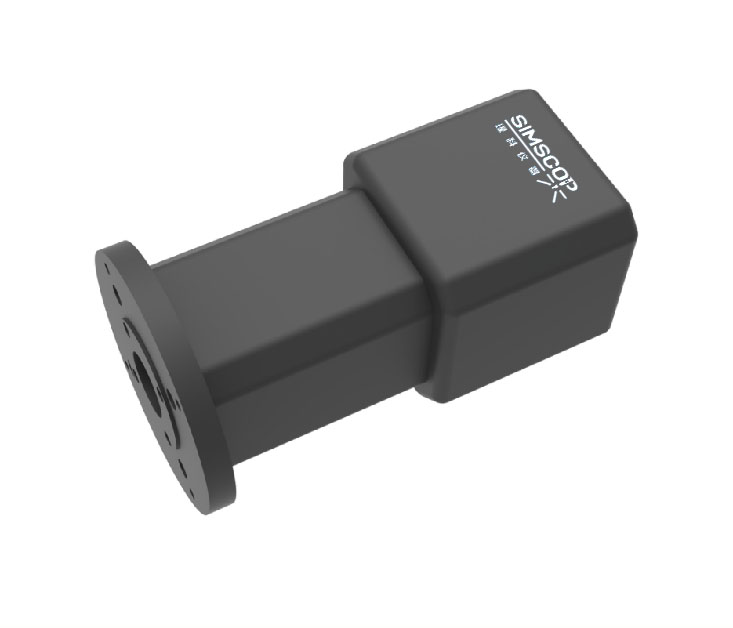

SFOA-091 Fiber Adapter Product Image
  1. Precision Alignment: Enables precise fiber alignment, reducing optical loss and reflections while maintaining signal quality and stability.
  2. Broad Compatibility: Supports multiple fiber connector interfaces, including FC-PC, FC-APC, and SMA905, for easy integration with different systems and instruments.
  3. Stability and Durability: Designed for mechanical stability, withstanding frequent connection and disconnection while maintaining consistent performance.
  4. Low Insertion Loss and Low Return Loss: The high-quality connection structure helps reduce insertion loss and return loss, improving overall system performance.
  5. Easy Installation and Maintenance: Operators can connect the fiber quickly without complex adjustments or specialized tools.


Applications

  1. Spectroscopy: Transfers light from the sample to a spectrometer or spectrograph, helping maintain optical transmission efficiency and spectral measurement resolution.
  2. Sensors: Distributes optical signals to different sensors in fiber-sensing systems or combines sensor feedback signals for delivery to the measurement system.
  3. Communications: Distributes or combines optical signals in fiber-optic communication systems and supports multi-channel signal routing.
  4. Laser Systems: Couples a laser beam into a fiber or couples the fiber output into other instruments and optical systems.
  5. Medical Equipment: Transmits optical signals in medical imaging and diagnostic equipment for high-precision detection and imaging.

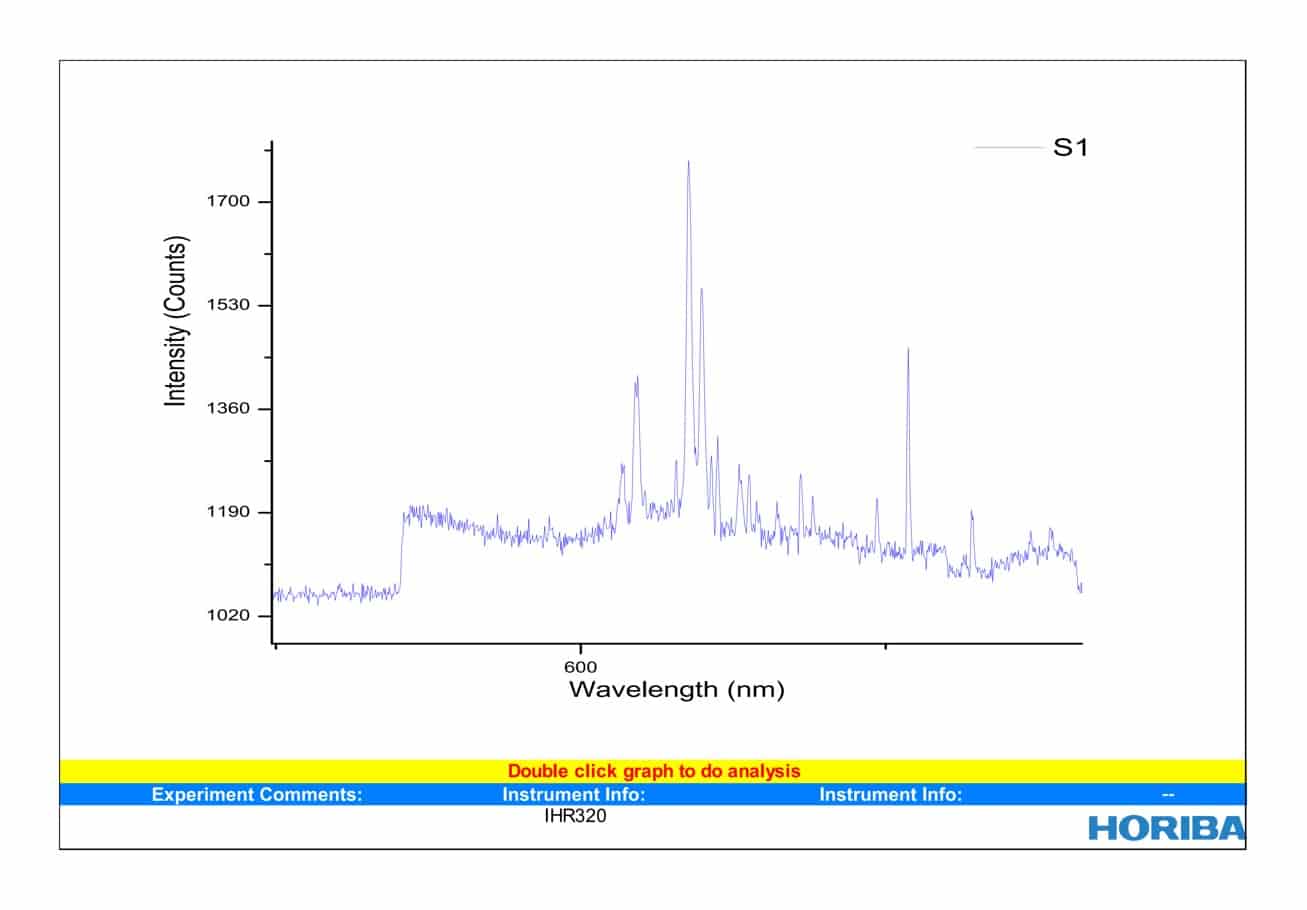

Fiber Adapter Spectral Test Result

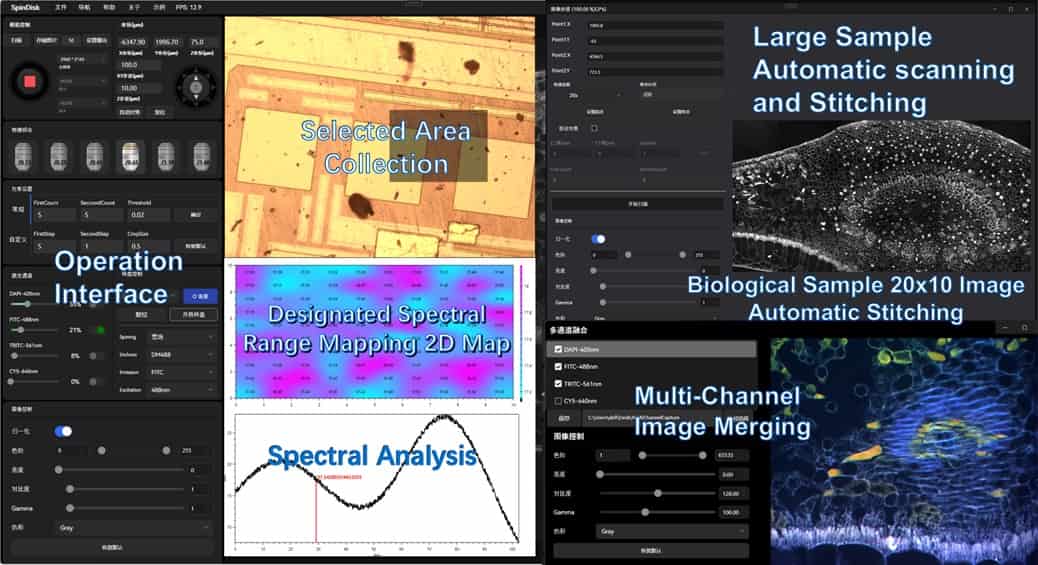

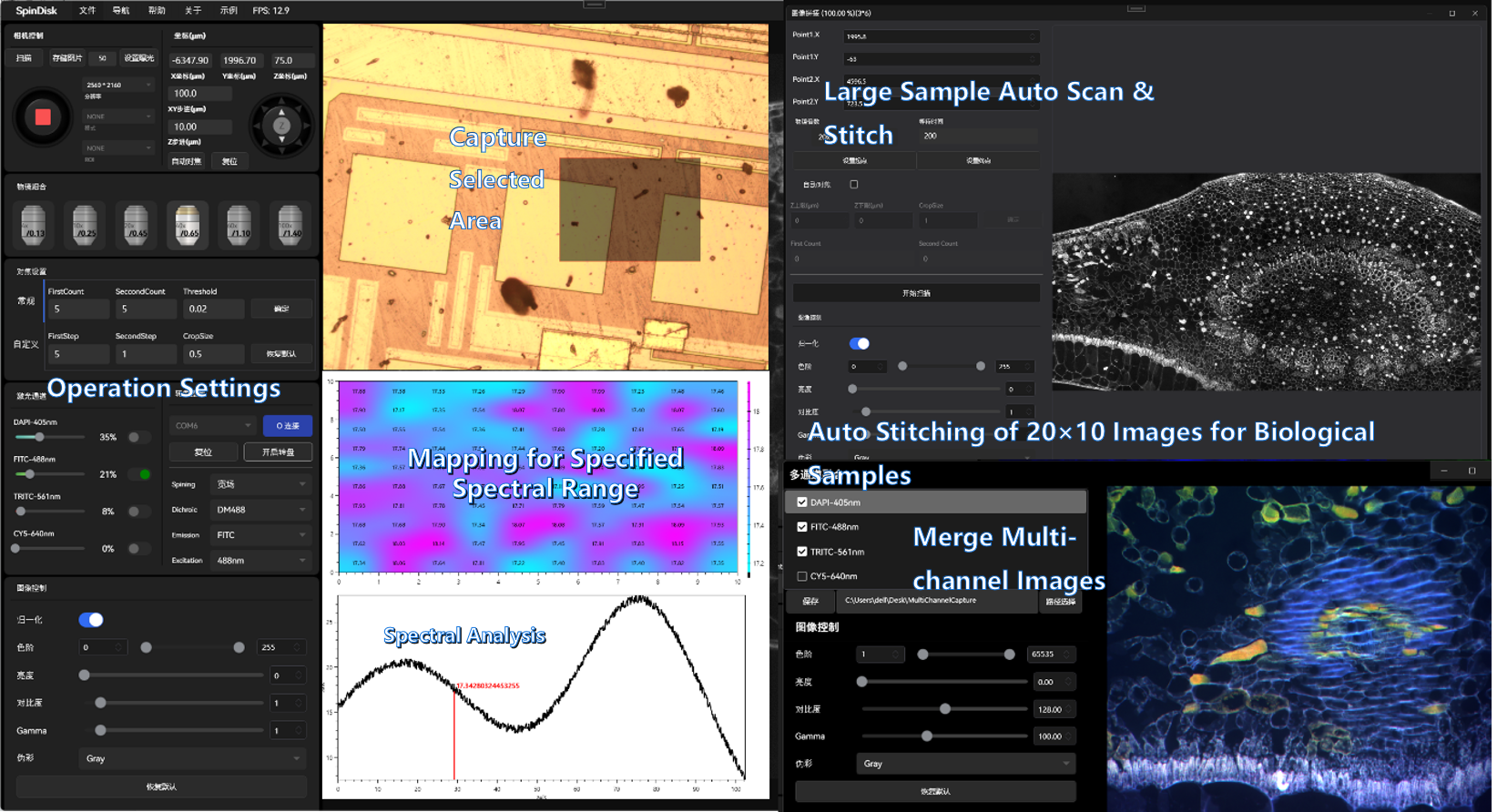

Software


Core Software Features

  1. Raman Confocal Image Acquisition Software
    • Supports real-time control and synchronized operation of hardware devices such as motorized stages, lasers, cameras, and spectrometers.
    • Offers flexible configuration of Raman acquisition parameters, including exposure time, accumulation counts, wavenumber range, and more, to suit diverse experimental requirements.
  2. Confocal 3D Scan Imaging & Raman Mapping
    • Allows user-customizable scanning ranges and grid points across the XYZ planes, achieving automated scanning via the motorized stage.
    • Records spectral data at every coordinate point and supports generating Raman feature maps by selecting specific Raman peaks, facilitating sample characterization and comparison.
    • Supports point, line, and planar 2D cross-sectional scan imaging alongside 3D image stitching.
    • Provides intuitive side-by-side displays of 3D video/images and Raman spectra to help users analyze spatial structures and chemical compositions.

Name Model Wavelength Range Detector Resolution Noise Ratio Dynamic Range

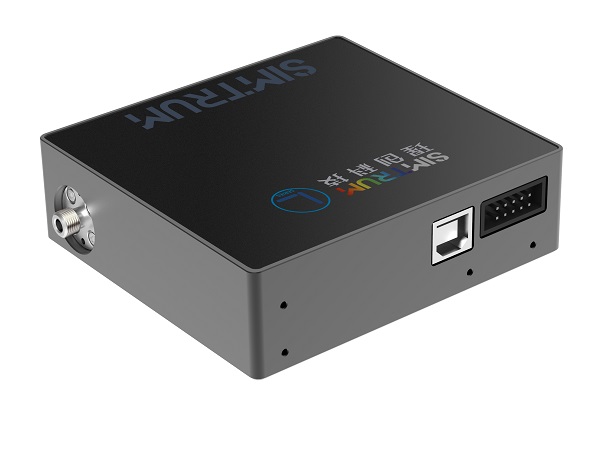

High Resolution Spectrometer

 L Sereis 200-1100nm Hamamatsu，S11639，2048 pixels <1nm customizable 500:1 2000:1

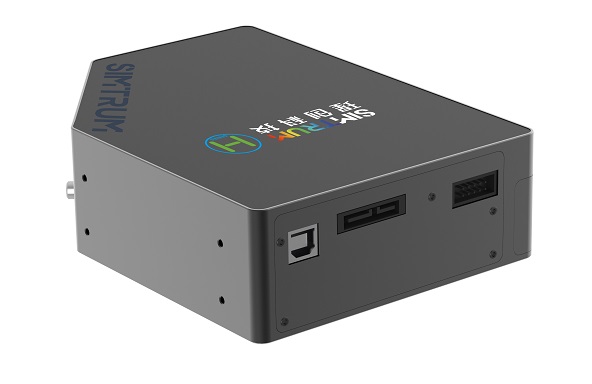

High Resolution Spectrometer

 H Series 200-1100nm Hamamatsu，S11639，2048 pixels <1nm customizable 500:1 2000:1

Back Illuminated Spectrometer

 M Series 200-1100nm Hamamatsu，S10420，64×2048 pixels <1nm customizable 800:1 5000:1

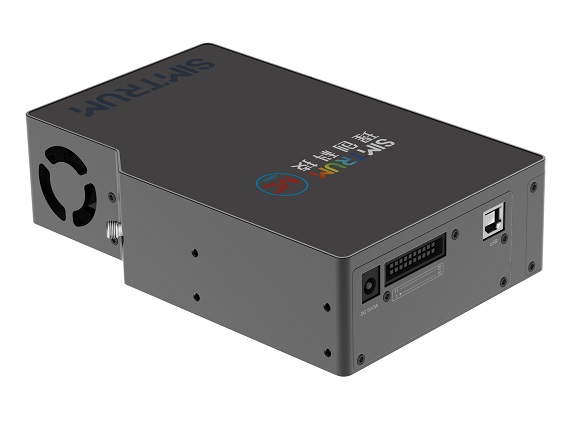

Hi Sensitivity Cooled Spectrometer

 MC Serie 200-1100nm Hamamatsu，S7031，64×1044 pixels <1nm customizable 1000:1 10000:1

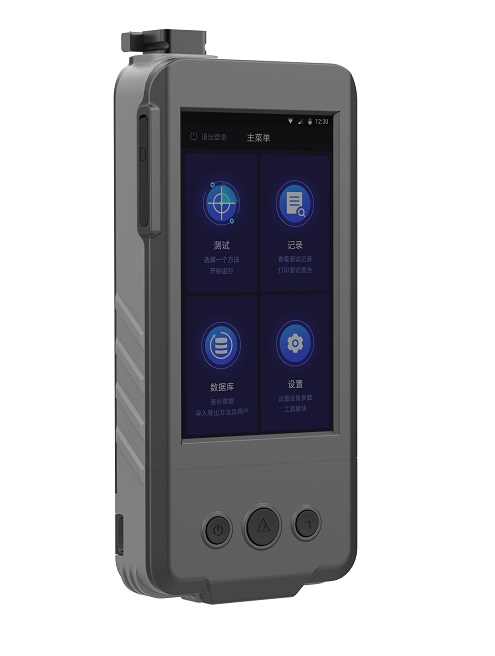

Handheld Raman System

 RM 785/1064nm

Band Range

200-3200cm-1/ 200-2500cm-1

 6 - 8 cm-1

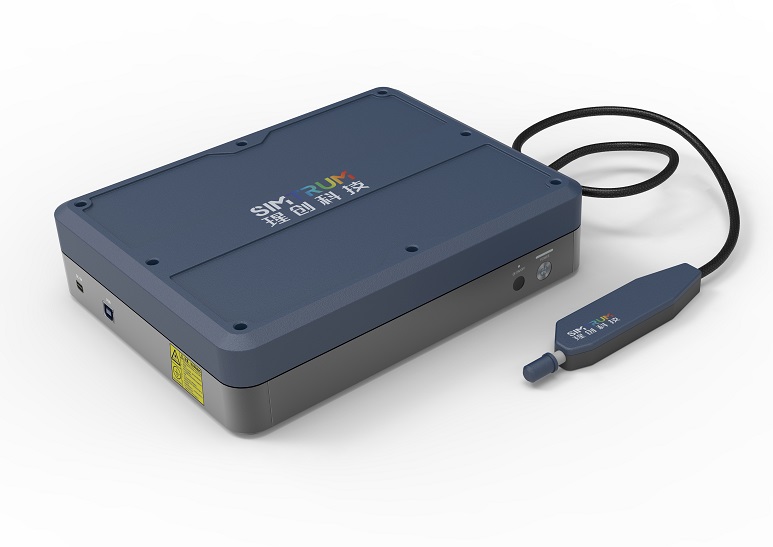

Portable Tabletop Raman System

 RMT EZ 785nm Band Range  200-3200cm-1
 7 cm-1  typical

Portable Tabletop Raman System

 RMT 532/785/1064nm

Band Range

200-3200cm-1/200-1800cm-1

 8 - 9 cm-1 typical




SIMSCOP_P_Series Laser Scanning Confocal Microscope,
High Speed Line Scan Confocal Microscope
Fluorescence / Photoluminescence Microscope
Time Correlated Single Photon Counting (Solution)





XY Microscope Piezo Stages
Model ST-XY3-11075 ST-XY2-7550
Stroke(mm) 110 X 75 75 X 50
Driver Piezoelectric Motor Piezoelectric Motor
Maximum Load Capacity(KG) 1 1
Maximum Speed(mm/s) 100 100
Minimum Step Size(nm) 20 (50, 100nm for option) 50
Repeatability(nm) +/-200 +/-200
Position Sensor Grating Grating
Material Aluminum Alloy Aluminum Alloy
Weight(KG) 3.3 2.5
