Near Infrared Single Photon Detector STRSPD-305

Products / Light Analysis /Photodetectors /Single Photon Detector (SPD)(200-1700nm) /NIR Single Photon Detector(900-1700nm) /
NIR Single Photon Detector(900-1700nm)
NIR SPD Free-running NIR SPD Gated Resources Related Product Order Now!

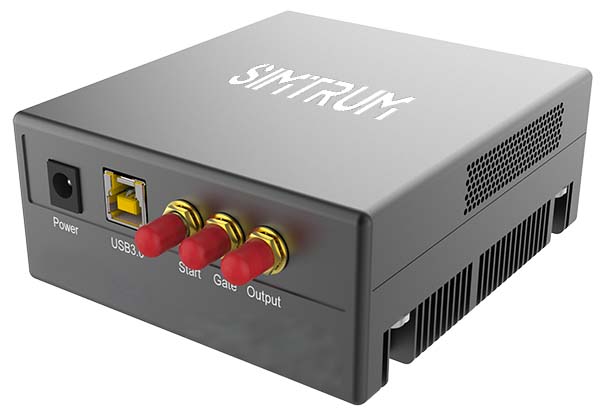

NIR-SPD-900-1700-FR Near infrared single photon detector is a light detector module based on InGaAs/InP process. Working in Free runnning mode, it can detect and count light pulses of single photon level under low light conditions. It has the characteristics of high detection efficiency, low dark count rate and low post-pulse probability. At the same time, the module is compact in structure and stable in performance.

The detector employs active quenching and active reset technologies, and is integrated with a built-in Time-to-Digital Converter (TDC) function. It can statistically collect and output the time information of incoming single photons in real time, eliminating the need for customers to build an external TDC system.




Features

  • Compact structure and stable performance
  • Extremely low dark count rate and afterpulse probability
  • -Free running

Application

  • Quantum optics, quantum secure communication
  • Quantum imaging, quantum entanglement
  • Photon number calibration of pulse light source
  • Laser ranging, lidar (LIDAR)
  • Fluorescence spectroscopy, time-resolved single molecule measurements
Parameters
Model NIR-SPD-900-1700-FR NIR-SPD-900-1700-FR-DZ NIR-SPD-900-1700-FR-CDZ



  Responsivity vs. Wavelength in Linear Mode
Number of Channels 1 Channel
Detection wavelength range 900~1700nm
Operating Mode Free Running
Detection Efficiency ~30%@1550nm
Dark Count < 5k cps@30%PDE < 2k cps@25%PDE < 1.2k cps@25%PDE
Afterpulse Probability ~7%
Cooling time ≤ 3min
Dead Time 200ns~100us
Jitter ~150ps
Recommended
operating temperature		 0~35℃
Power Supply DC12V
Dimension (WxDxH) 110mm×98mm×44mm
Weight 0.95Kg
Optical Input Interface FC/UPC
Input/Output Interface SMA
Fiber Core Diameter 62.5um



Product Size (unit: mm)












NIR-SPD-900-1700 Near infrared single photon detector is a light detector module based on InGaAs/InP process. Working in pulse gated mode, it can detect and count light pulses of single photon level under low light conditions. It has the characteristics of high detection efficiency, low dark count rate and low post-pulse probability. At the same time, the module is compact in structure and stable in performance.

It can be used as the upper computer data communication through the USB serial port, and can also directly detect the output pulse signal, which can be used to access the system or counter. The maximum external trigger frequency can be supported by 100MHz.


Features

  • Compact structure and stable performance
  • Maximum 100MHz gated repetition frequency
  • Gated synchronization input interface
  • Extremely low dark count rate and afterpulse probability
  • Up to 4 devices can work in cascade

Application

  • Quantum optics, quantum secure communication
  • Quantum imaging, quantum entanglement
  • Photon number calibration of pulse light source
  • Laser ranging, lidar (LIDAR)
  • Fluorescence spectroscopy, time-resolved single molecule measurements



Product Specifications and Brochures

Product Brochure Link:



Technical Parameters
Detection wavelength range 900~1700nm
External trigger frequency 1-100MHz
Gated width 1ns typ.
Effective width of detection[1] 170ps typ.
Single photon detection efficiency[2] 10% 15% 20%(default) 25% (±1%)
(30% per request)
Dark count rate STD: ≤ 6.0e-6/gate @ 20%SPDE
ULN: ≤ 0.5e-6/gate @ 20%SPDE
Posterior pulse probability@50MHz ≤ 1% @10%SPDE
≤ 2% @20%SPDE
≤ 5% @25%SPDE
Cooling time ≤ 5min
Dead time adjustment 0-1000 clocks
Other parameters
Recommended operating temperature[3] -10~35℃
Limit operating temperature[4] -15~40℃
Supply voltage 11.5V~12.5VDC
Power dissipation Maximum cooling power consumption <36W
Stable maximum power consumption <15W
Dimension (WxDxH) 72.4 x 152 x 57.5 mm
Weight 0.95Kg

Note:
[1]The detection count drops to half of the photon count peak corresponding to the gated to photon relative time width.
[2]Single photon detection efficiency calibrated at 1550nm wavelength at room temperature 25°C.
[3]SPAD cooling works normally, and the photon count fluctuation range does not exceed 20% of the calibrated value.
[4]SPAD cooling works normally, and the photon count fluctuation range does not exceed 50% of the calibrated value.



Characteristic Curve

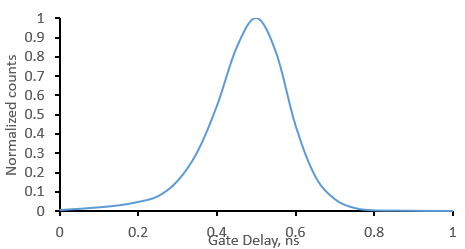

Effective gate width(Gate width = 1ns)

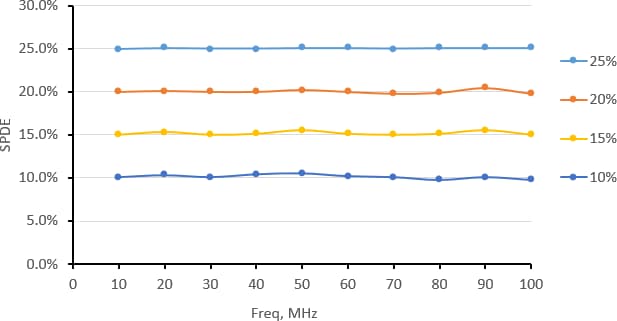

Detection efficiency vs gating frequency
 (SPDE=10%,15%,20%,25% @1550nm)

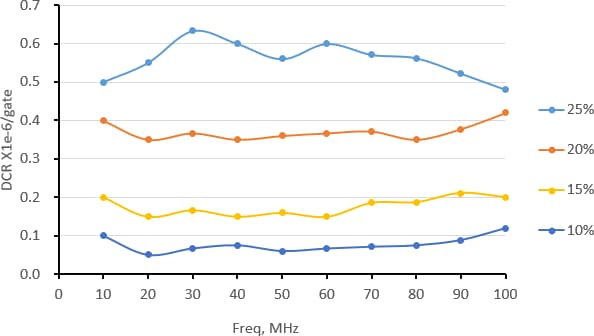

Dark count rate vs gate frequency
( SPDE=10%,15%,20%,25 % @1550nm, ULN )

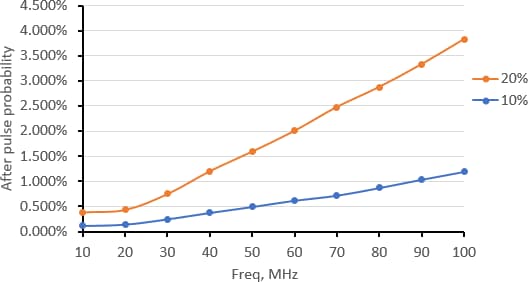

Postpulse probability vs gating frequency
(SPDE=10%, 20% @1550nm)



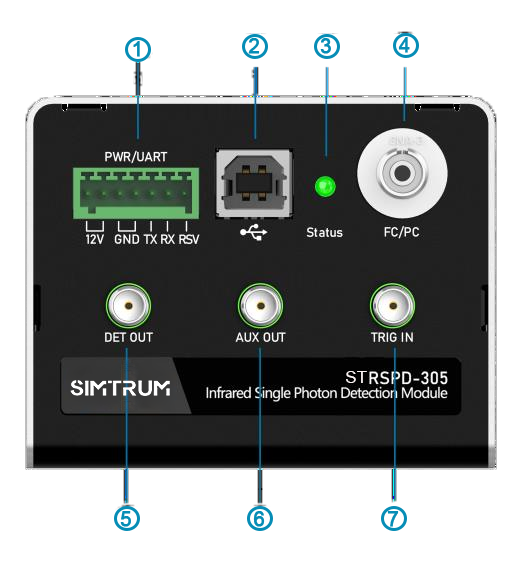

Interface Definition

• PWR/UART power supply and communication cascade interface
• USB USB host computer communication interface
• Status status indicator light, red - cooling, green - cooling completed
• FC/PC Detection fiber input interface,FC/PC
• DET OUT detection output interface, LVCMOS levely
• AUX OUT synchronization/auxiliary output interface, LVCMOS Levely
• TRIG IN external gate trigger input interface, AC coupling 50y, 0.1~3.3Vpp input

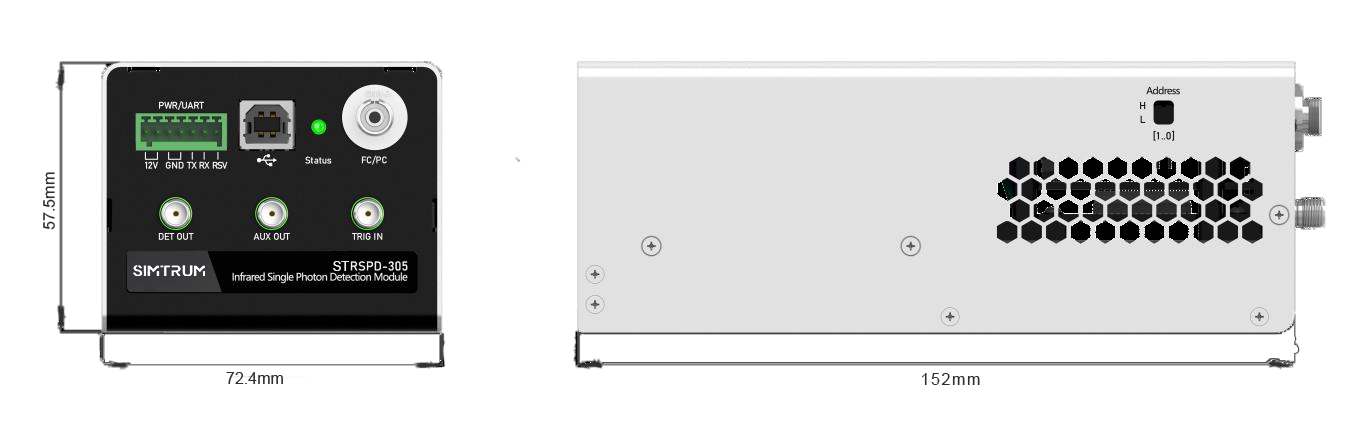

Product Size (unit: mm)

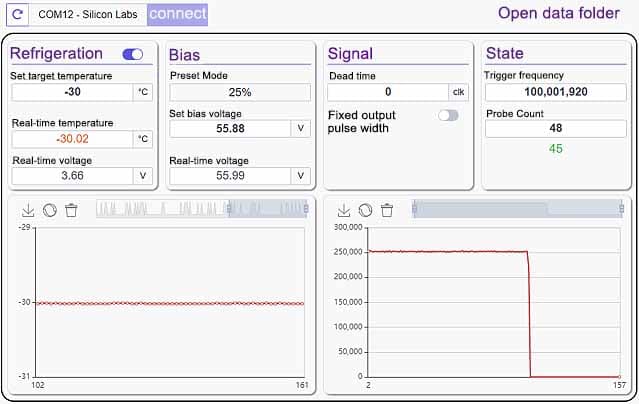

The following is the software installation package, please click to download： NIR_Single Photon Detector _software.zip




Infrared Single Photon Detector(SPD)

Model Wavelength Range Jitter  QE  Dark Count Rate
NIR Single Photon Detector (Dual Channels)
 900-1700nm <100ps    ≤2e-6/gate @10% SPDE
Super Conducting Nanowire System 780 - 1625nm 20- 40ps >80% over min 100nm <1Hz  to <100Hz
NIR Single Photon Detector (900-1700) 900 - 1700nm   10%, 20% @1550nm ≤2e-6/gate @10% SPDE
NIR Single Photon Detector Free Running/Gated 900 - 1700nm <150ps
 up to 35% 0.8 to 6 Khz

NIR Single Photon Detector Low Dark Count

 900 - 1700nm <150ps
 25% 50 t0 200 Hz
