TP-50.8-6

Products / Optics /Terahertz Optical Components /Terahertz Polarizers / TP-50.8-6 /

Terahertz Polarizers, diameter 50.8mm, thickness 6mm, clear aperture 42mm

MODEL:TP-50.8-6

6-8 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
TP-25.4-5
Terahertz Polarizers, diameter 25.4mm, thickness 5mm, clear aperture 17.5mm 		6-8 Weeks $544.20

Compatible

Compare Model Drawings & Specs Availability Reference Price



General Specifications
  Substrate / Grating
   Polymer / Al
  Substrate Thickness   35 mm
  Outer Diameter of Polarizer   2 inch
  Effective Area Diameter   42 mm
  Polarization Direction Transmittance   > 70% @0.1-2 THz
  Polarization Extinction Ratio   32-40 db @ 0.1-2 THz
  Grating Period / Width
   10 μm / 7 μm

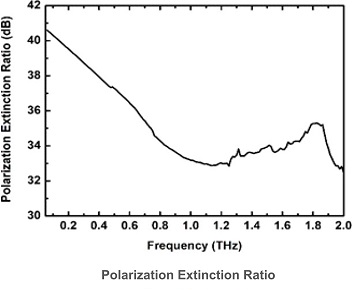

Polarization Direction Transmittance Polarization Extinction Ratio




Model Option

Product Code Diameter (mm) Thickness (mm) Clear Aperture (mm)
TP-25.4-5 25.4 5 17.5
TP-50.8-6 50.8 6 42





TP-50.8-6 - Parameter

Diameter (mm)
50.8

Thickness (mm)
6

TP-25.4-5 - Parameter

Diameter (mm)
25.4

Thickness (mm)
5

TP-50.8-6 - Download

TP-25.4-5 - Download
